Description

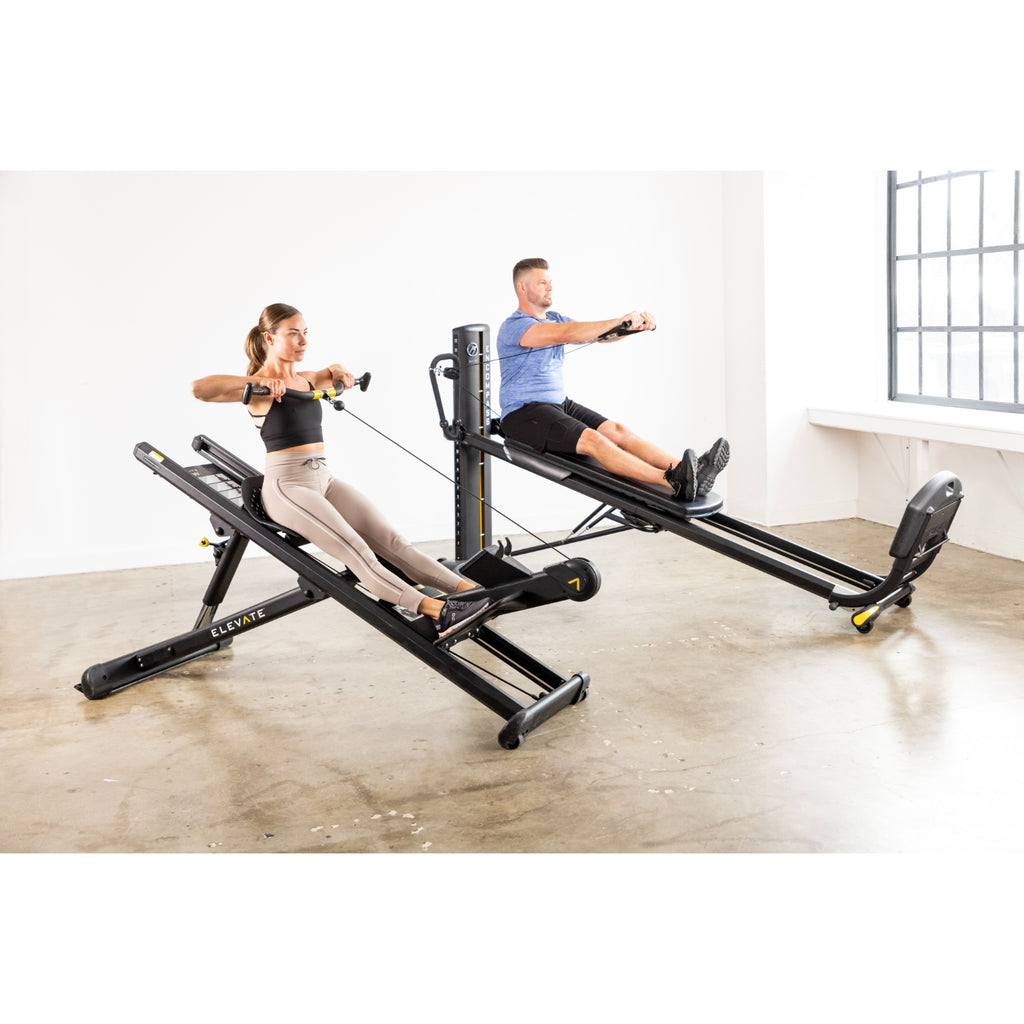

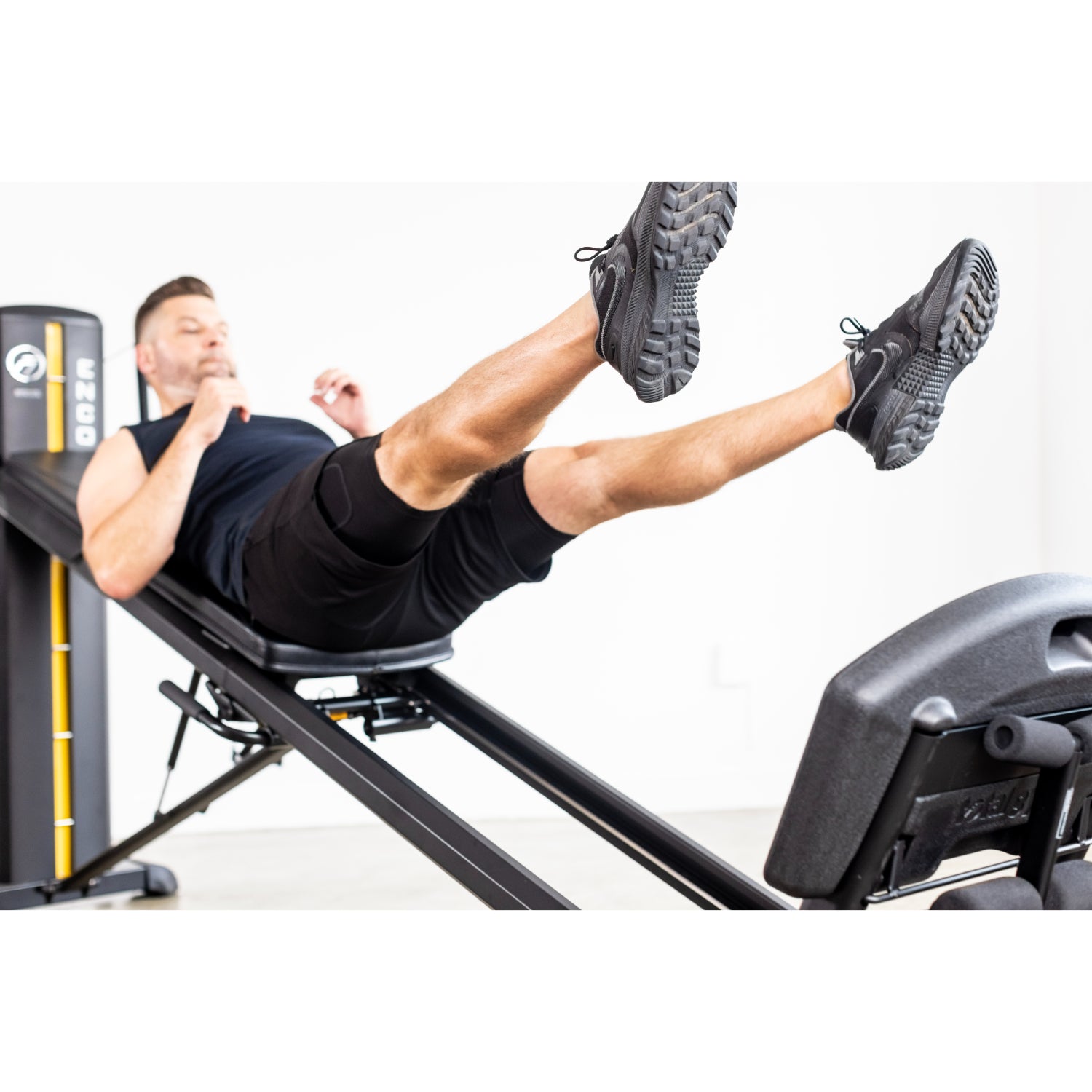

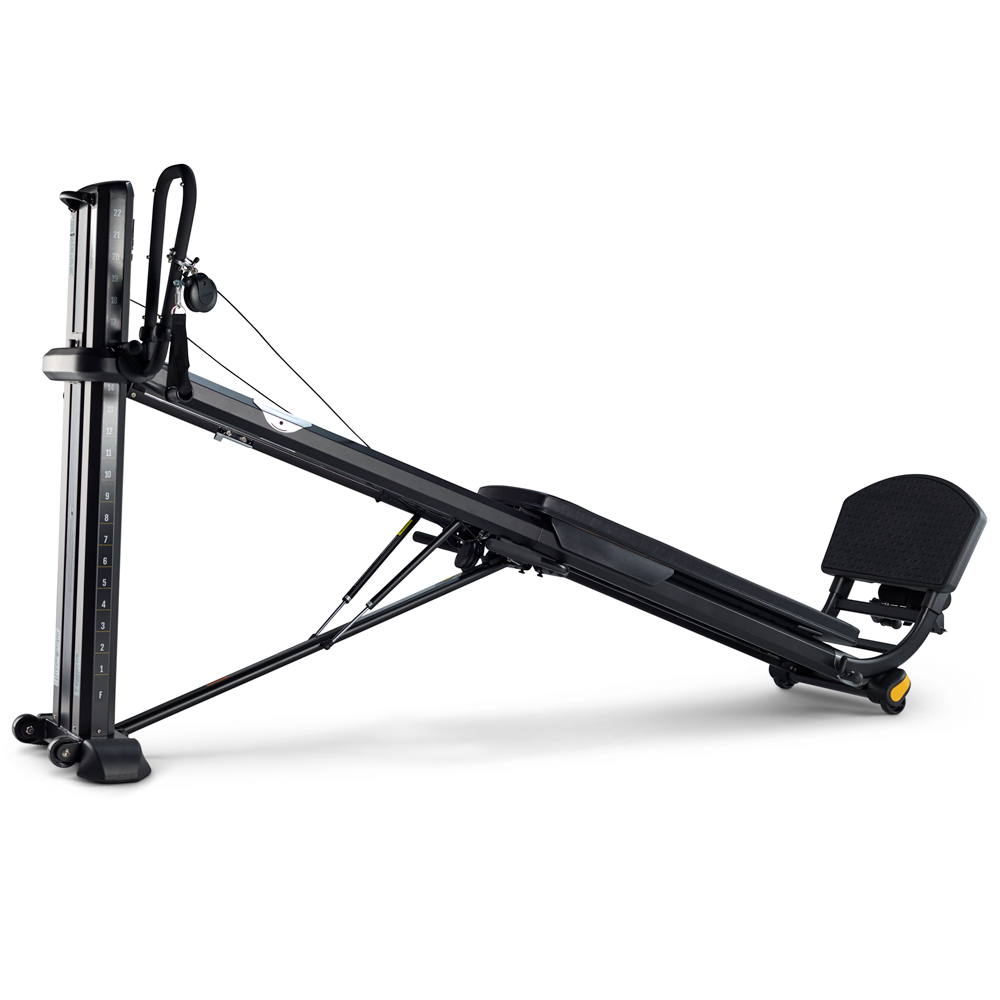

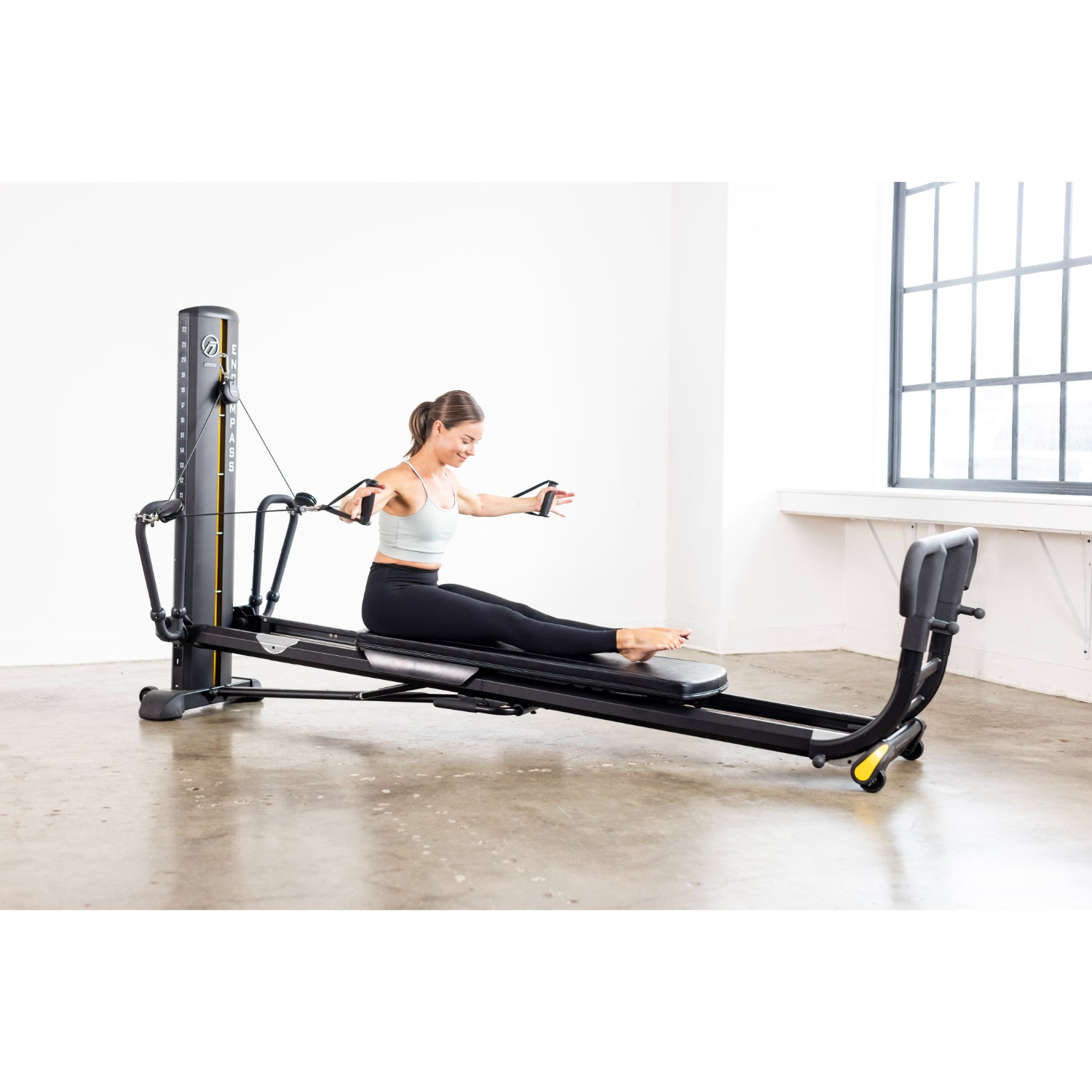

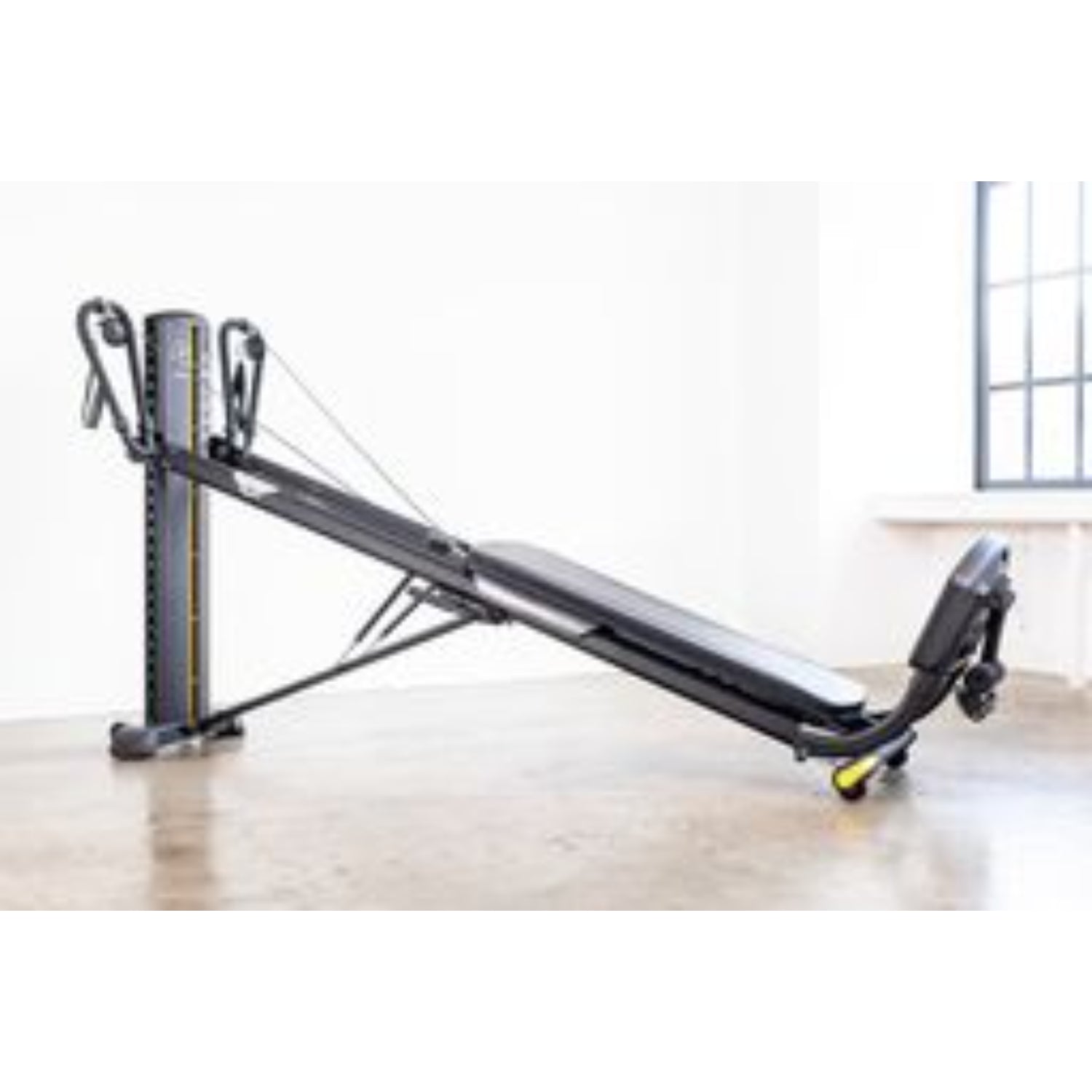

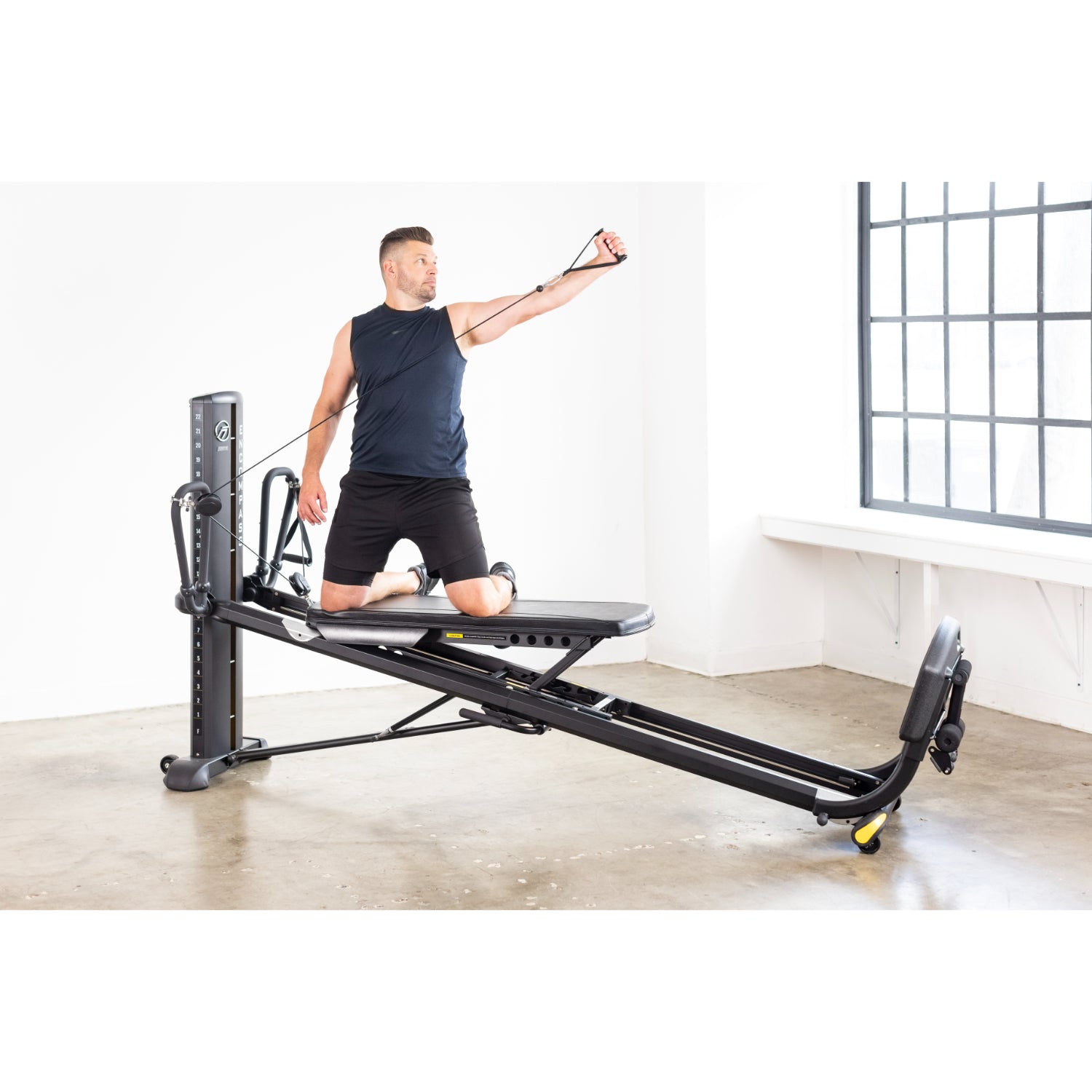

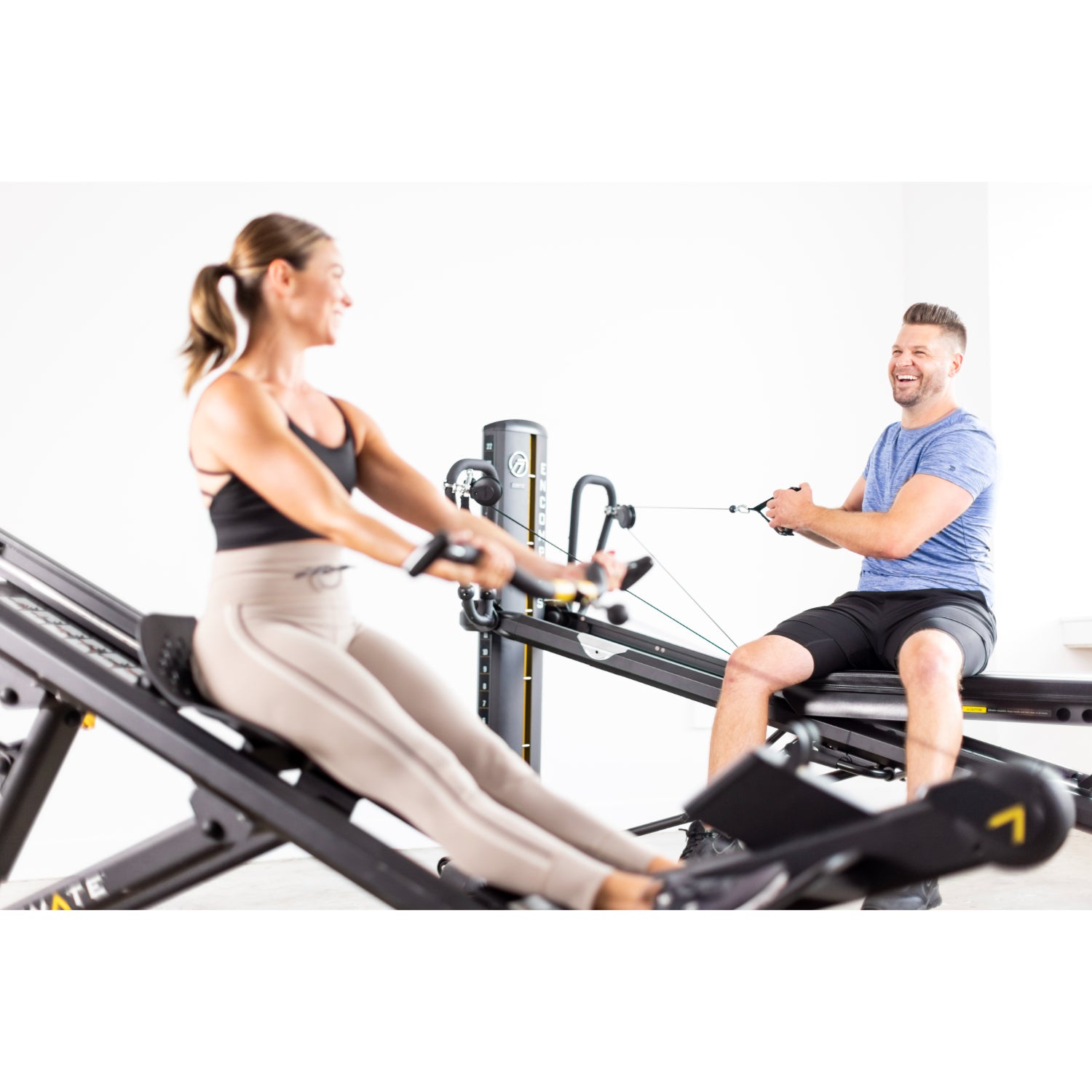

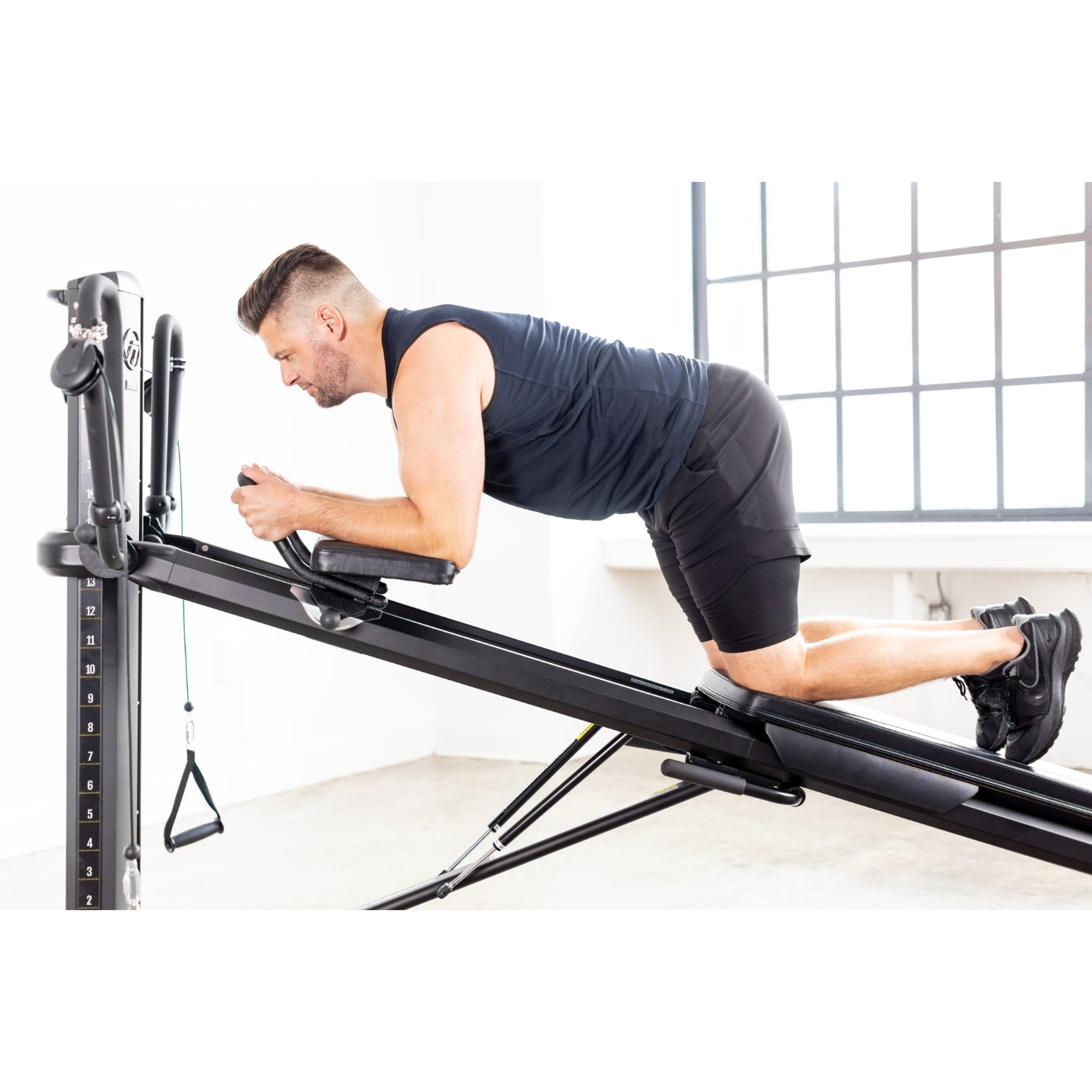

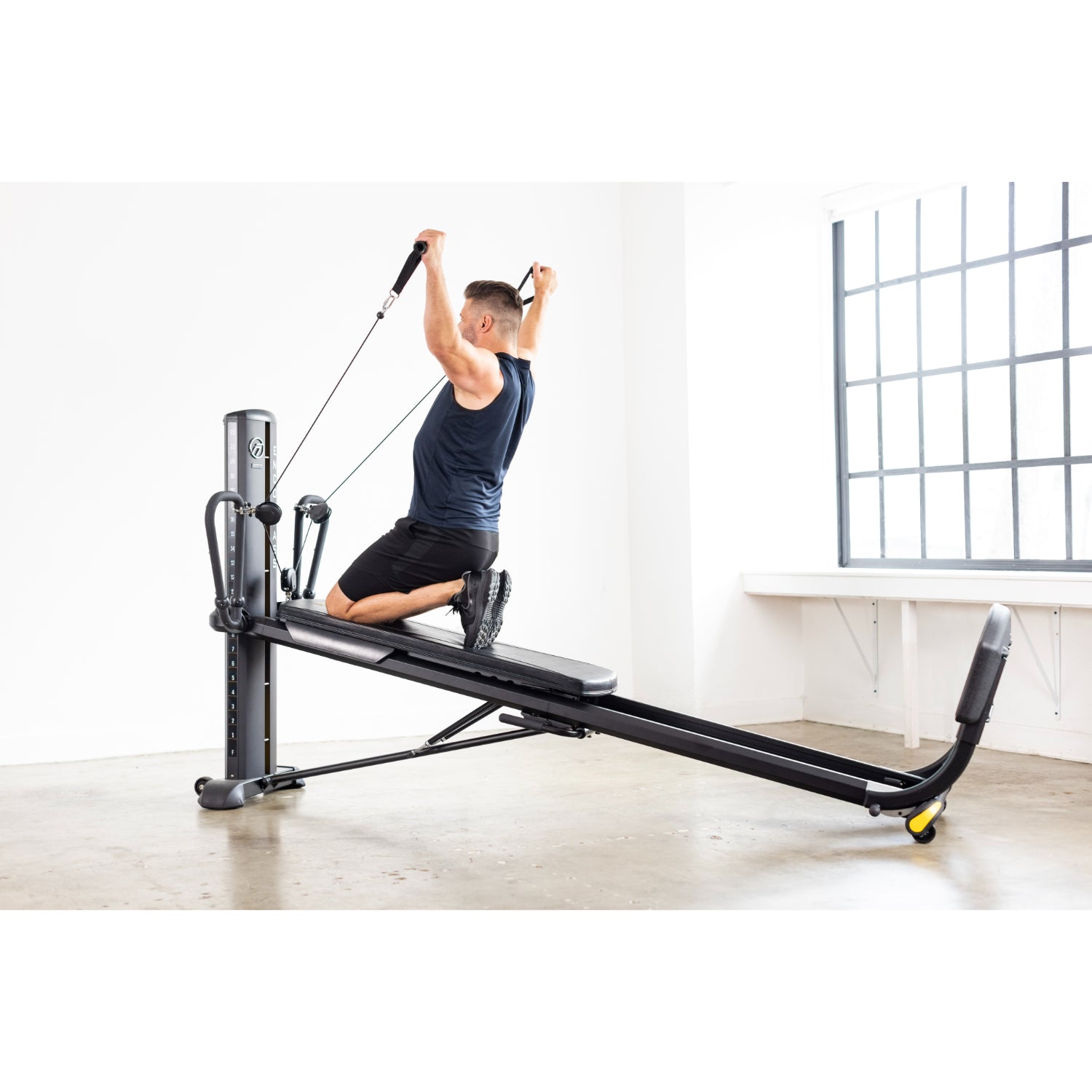

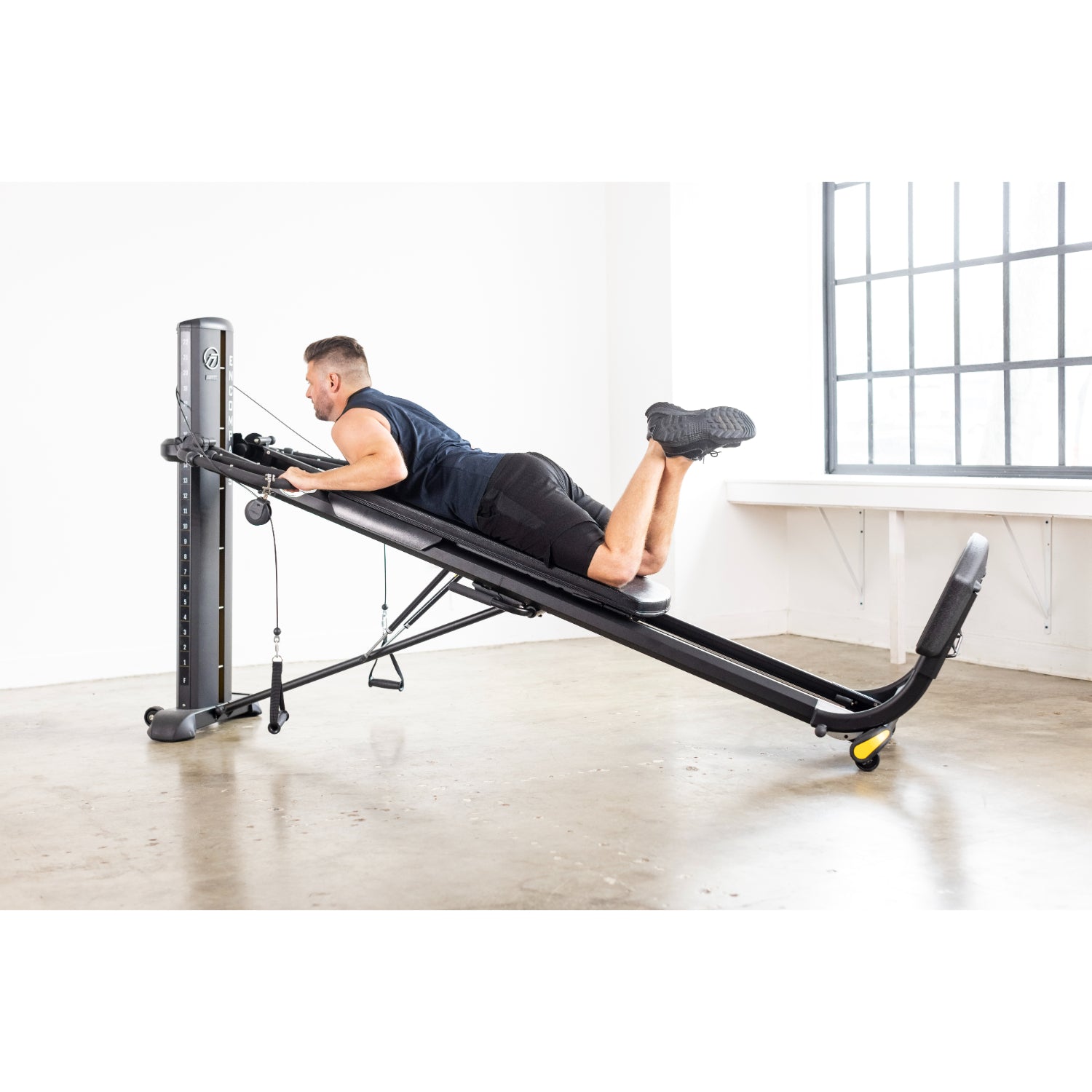

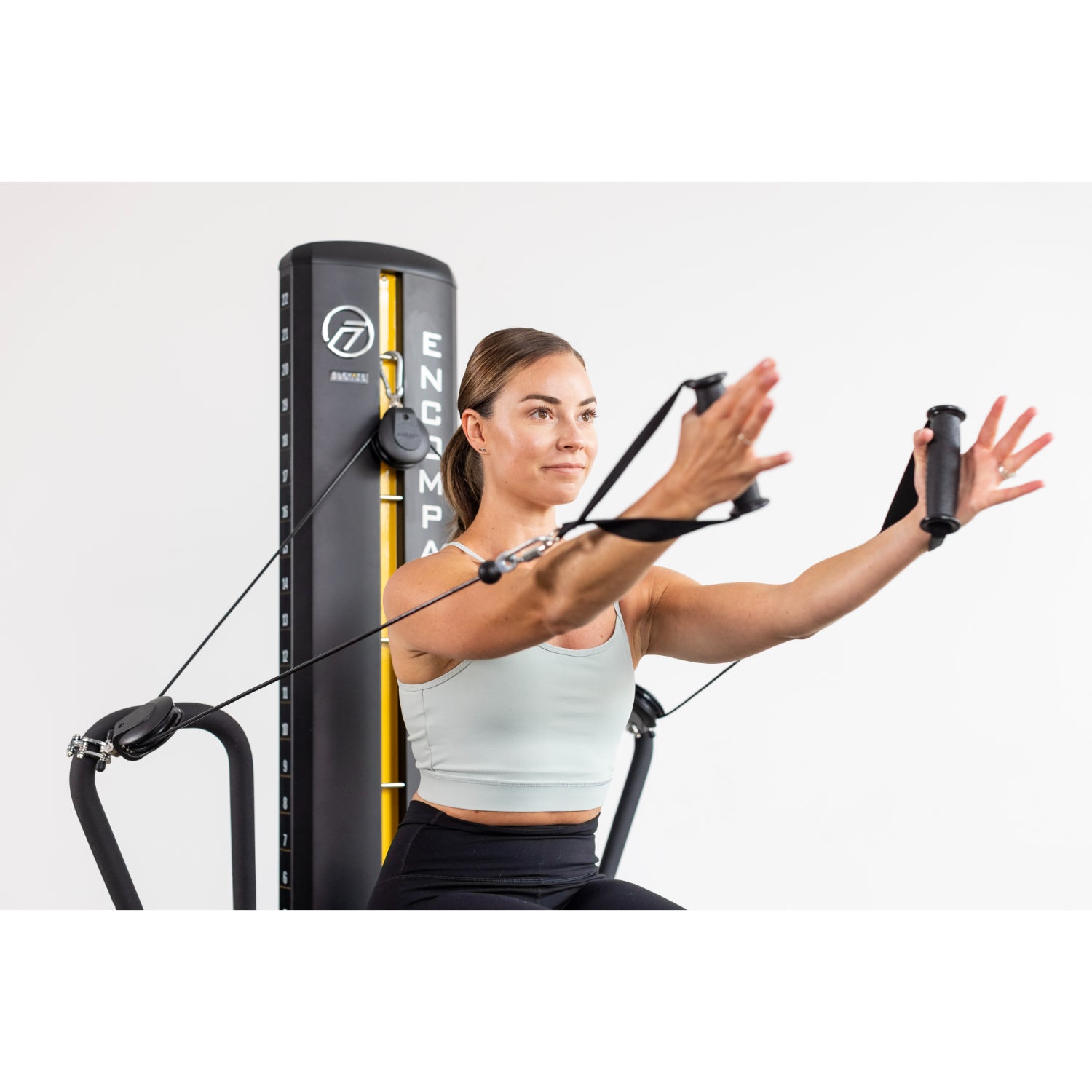

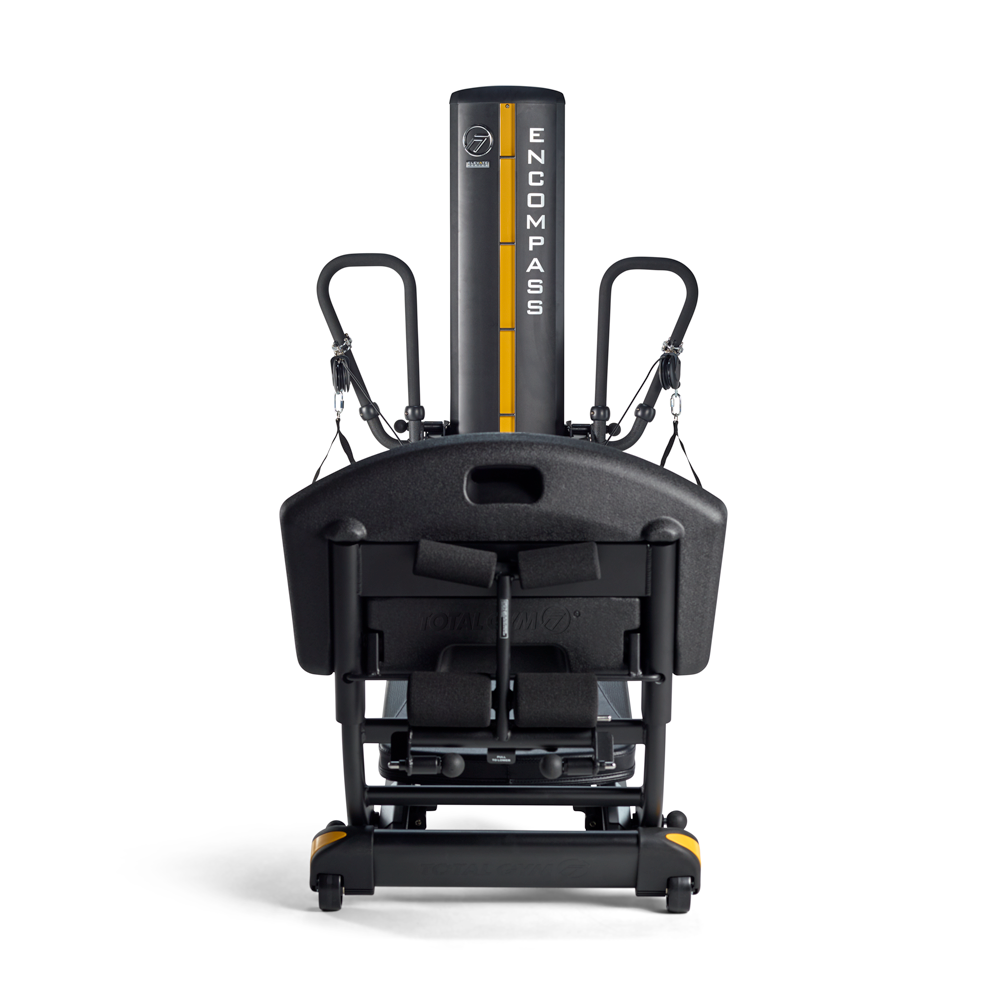

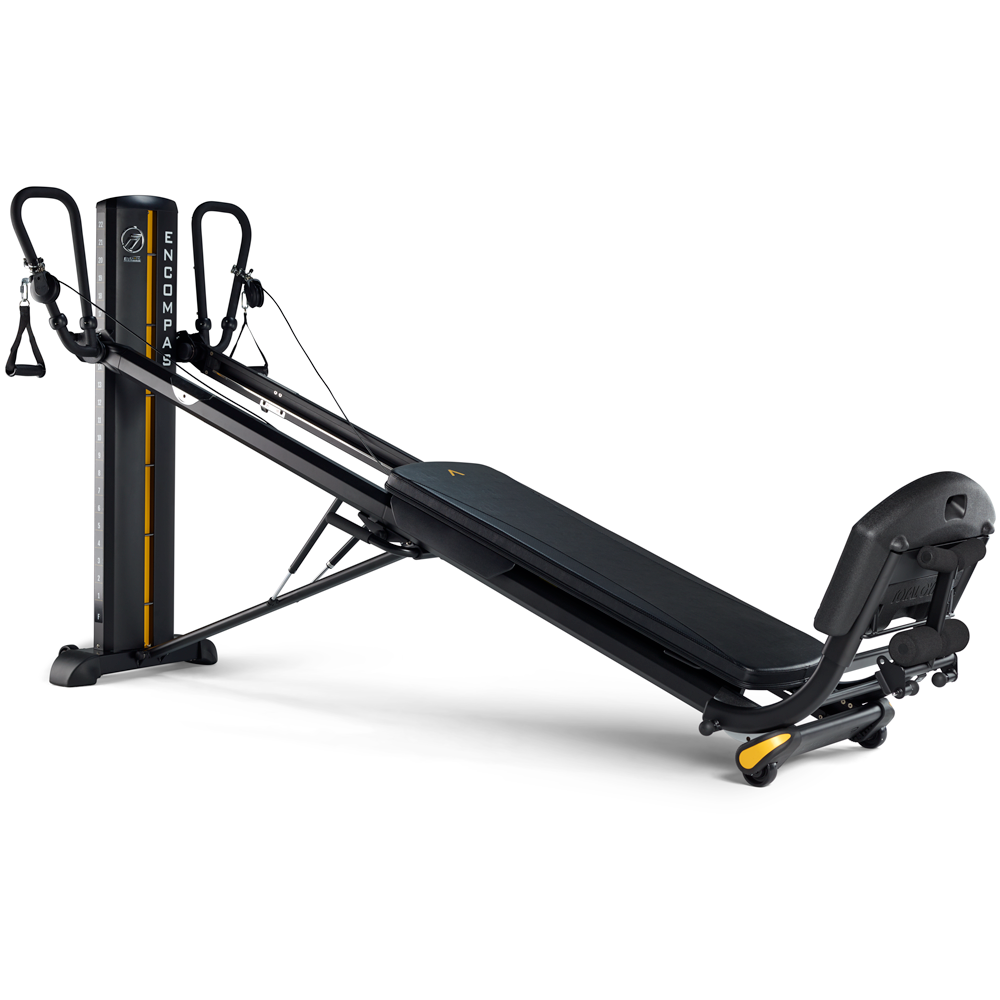

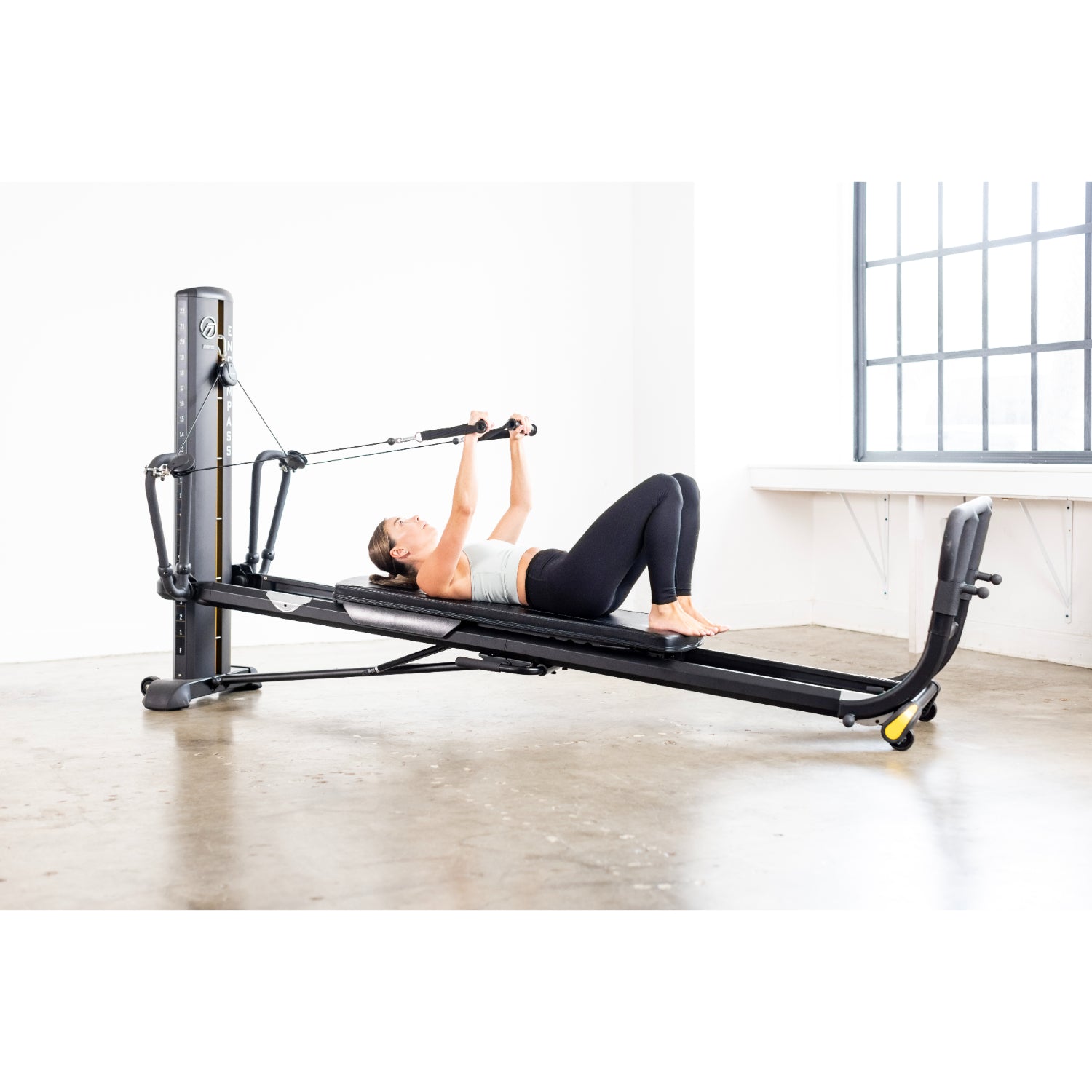

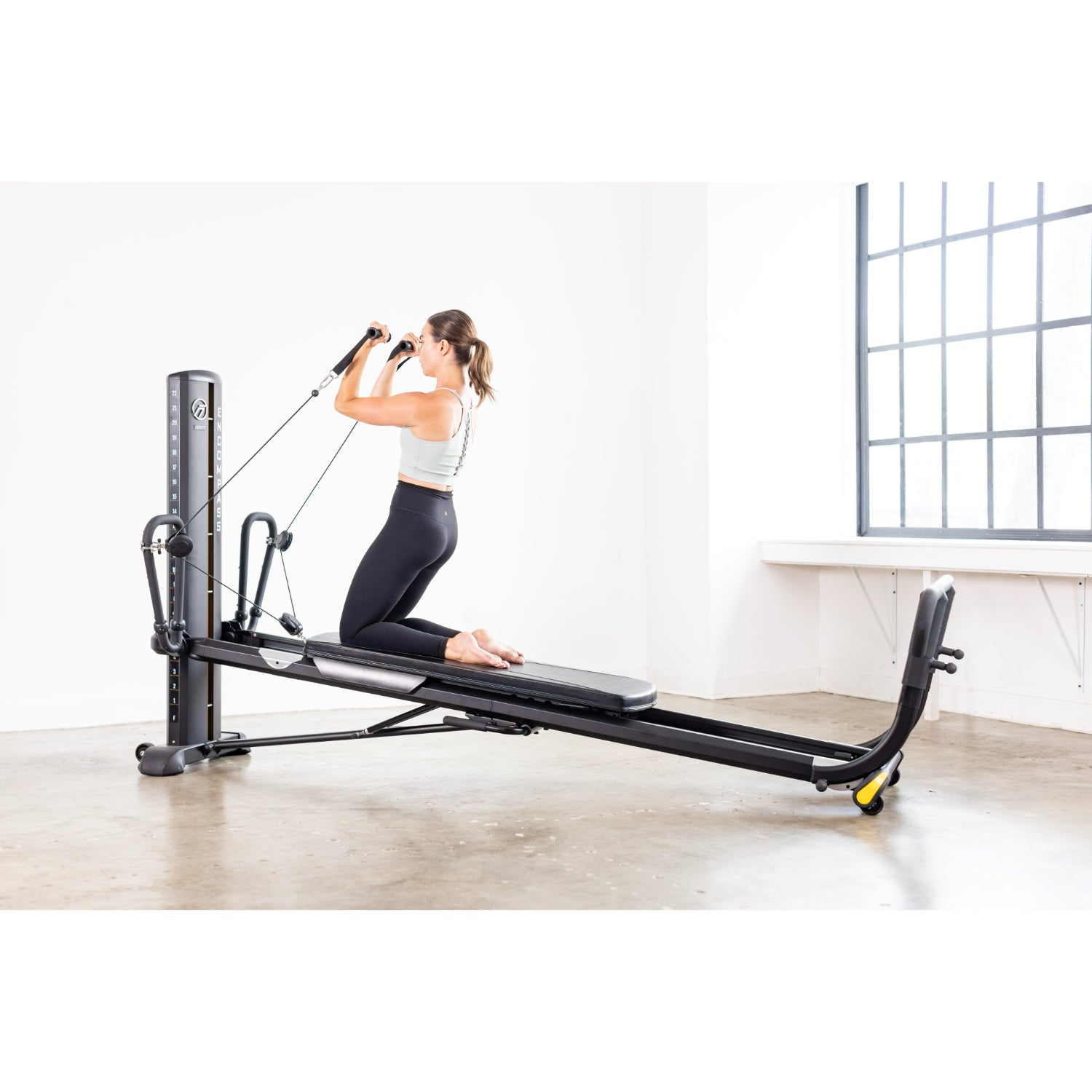

Total Gym ELEVATE Encompass - Full Body Functional Training
The Total Gym ELEVATE Encompass – Full Body Functional Training System (5200-B2) transforms the way you train by combining strength, flexibility, and balance into one seamless workout experience. Designed for total-body functional training, this versatile machine uses bodyweight resistance on an adjustable incline to engage multiple muscle groups simultaneously, improving core stability, coordination, and overall performance. Its multi-plane movement and unrestricted range of motion challenge proprioception and mimic natural movement patterns, making it ideal for all fitness levels.
Compatible with GRAVITY programming, the ELEVATE Encompass delivers a complete workout experience—perfect for commercial gyms, fitness studios, or personal training spaces—helping users build strength, tone muscles, and enhance daily movement efficiency in one compact, easy-to-use system.
Features
-
Adjustable Glideboard: Ensures optimal spinal alignment during transverse movements and supports a wide range of training variations for personalized workouts.
-
Automatic Rail Locks: Enable explosive plyometric training and enhanced strength and power exercises.
-
Hydraulic Rail Lift: Provides smooth level adjustments and allows for easy two-step folding for convenient storage and setup.
-
Multiple Center-Pulley Attachments: Expand your workout potential with double arm-cable load capacity and improved lower body range of motion.
-

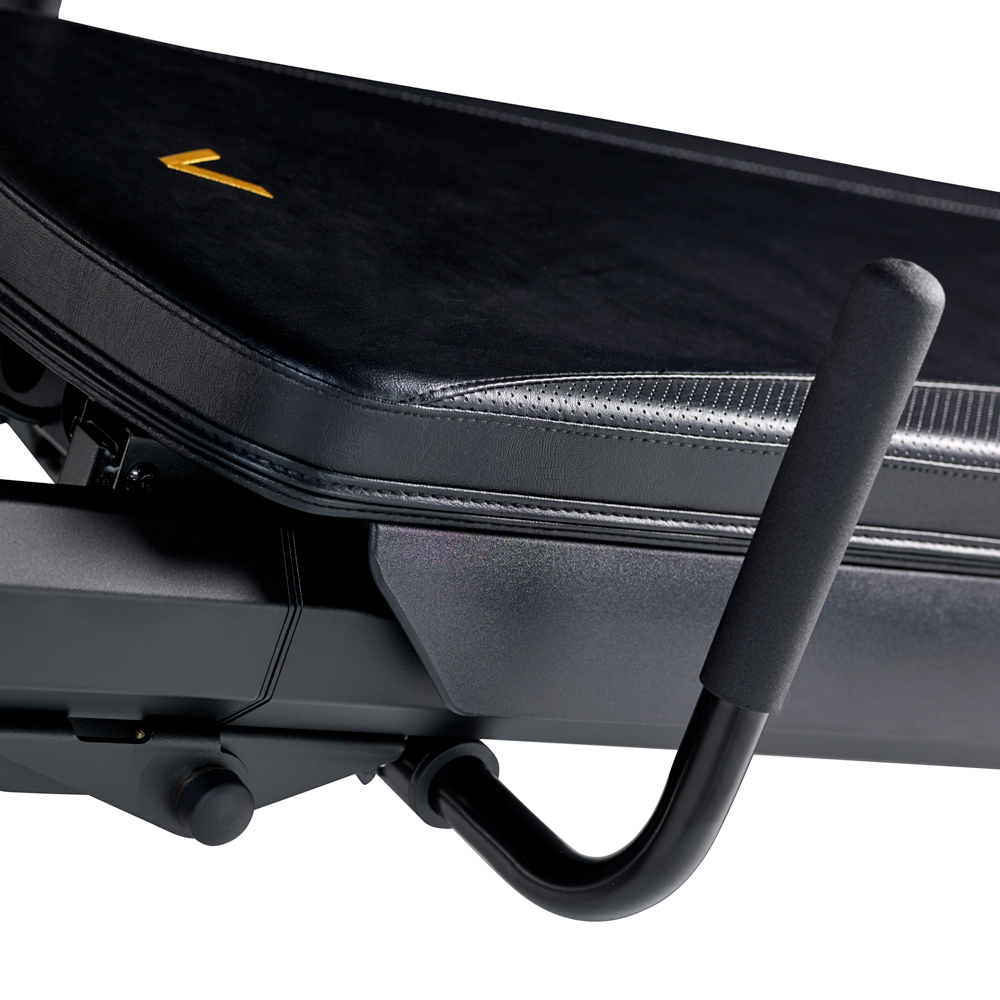

Retractable Dip Bars: Included as standard for upper body strength training, dips, and multi-angle movements.
-
LAT Bars: Designed to support line-of-pull specificity for effective arm and back cable exercises.
-
Versatile Exercise Options: Perform over 250 exercises and variations, from resistance training and functional movement to Pilates-inspired workouts.
-
Adjustable Resistance Levels: Customize your intensity with 1% to 62% of bodyweight resistance, perfect for users of all fitness levels.
Benefits for the Individual Exerciser:
-
Experience short, efficient, full-body workouts that deliver fast, visible, and transformative results.
-
Engage in body sculpting by activating core, abdominal, and back muscles in every movement.
-
Build strength, endurance, and stamina for total-body conditioning.
-
Improve balance, coordination, and flexibility through functional movement patterns.
-
Support weight management, reduce inches, and enhance your BMI and metabolism.
-
Enhance functional performance for daily activities and athletic training.
-
Achieve cardio-endurance gains even during resistance-based workouts.
-
Enjoy a low-impact, joint-friendly workout with complete back support for safety and comfort.
Training Applications & Biomechanics:
-
Utilize closed-chain, partial joint loading for safe, controlled strength development.
-
Perform exercises across all three planes of motion plus dynamic, multi-plane (3D) movements.
-
Benefit from unrestricted range of motion for natural body mechanics and flexibility.
-
Customize cable-pulley force angles to suit body size, training goals, and intensity levels.
-
Strengthen core stabilizers and proprioception for improved body control.
-
Train with activity-specific and sports-focused movements for performance enhancement.
-
Incorporate explosive plyometric exercises for both upper and lower body power.
-
Enjoy full-body support with non-compressive, joint-friendly mechanics.
-
Access over 200 exercise variations to target every muscle group.
-
Integrate Pilates-inspired functional training for balance and control.
-
Use as a reliable tool for assessing lower body strength and tracking progress.
-
Expand your training with a complete library of instructional and workout DVDs for continued progression.
Specifications
| Specification | Details |
|---|---|
| Unfolded Dimensions (L x W x H) | 106” x 38” x 57” (2.69 m x 0.96 m x 1.45 m) |
| Folded Dimensions (L x W x H) | 20” x 38” x 57” (0.51 m x 0.96 m x 1.45 m) |
| Tubing | 1.7" x 3.2" Aluminum Extrusion (4.4 cm x 8.1 cm) |
| Tower Construction | Reinforced steel with silver powder coating and internal level locking mechanism |
| User Weight Capacity | Rated up to 350 lbs (159 kg) |
| Maximum Load Capacity | 500 lbs (295 kg), inclusive of glideboard |
| User Height Limit | Up to 6'5" (2.0 m) |
| Glideboard | 16" x 48" (41 cm x 122 cm), 7 adjustable angles, heavy-duty two-tone design with tear-resistant vinyl |
| Foam Padding | 1.5" (4 cm) high rebound, high-density foam |
| Rollers | Sealed precision ball bearings |
| Pulleys | ABS plastic protective shield over a steel frame, nylon roller with precision ball bearings |
| Cables | 2000 lb test (907.2 kg) nylon 12 coated steel aircraft cable |
| Handles | Soft synthetic rubber padded handles with ABS swivel and nylon webbing for hammer grip |
| Frame & Rail Construction | Anodized aluminum rails reinforced with steel or forged aluminum |
| Unit Weight | 180 lbs (82 kg) |
| Electrical | N/A |
| Resistance Levels | 22 calibrated incline levels (1% – 62% bodyweight), with release lever for rail locking |

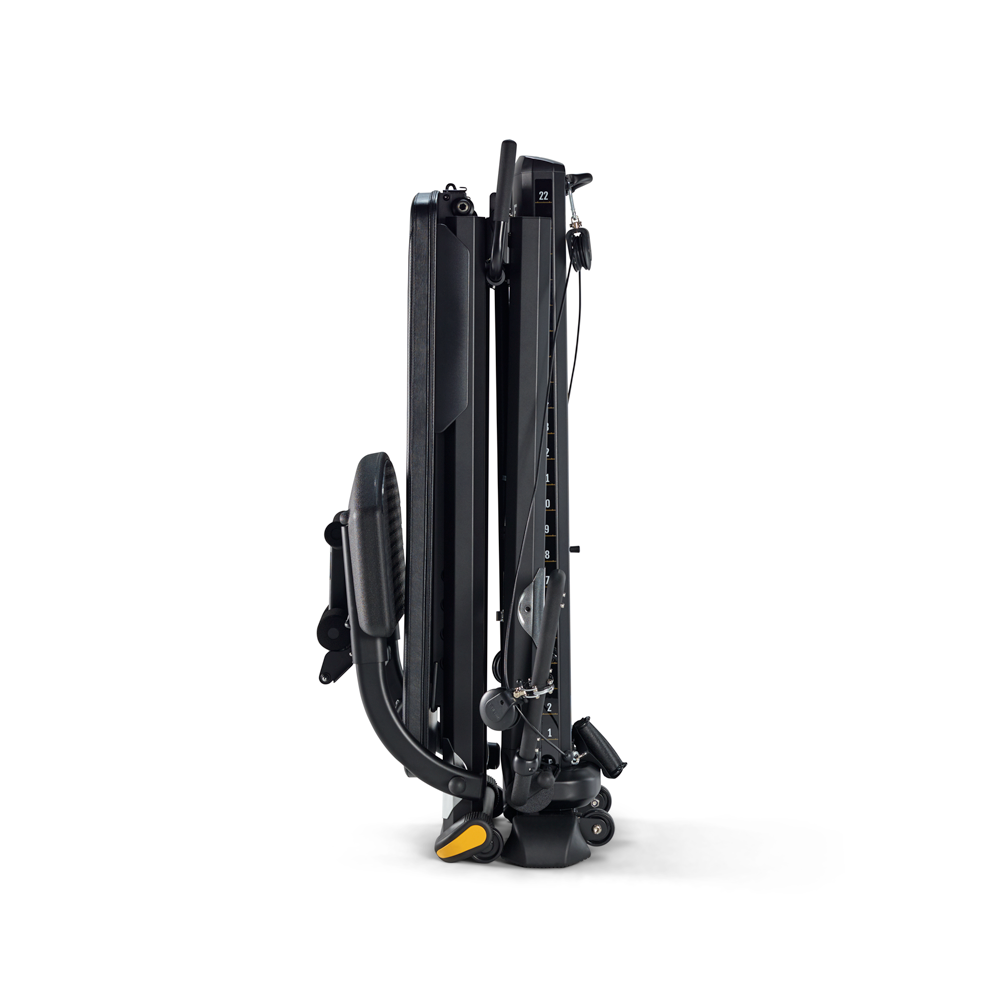

| Storage Capabilities | Hydraulic lift assists folding; stores upright; rolls like a hand truck |
| Included Equipment | 7-position adjustable glideboard, dynamic pulley system (unilateral/bilateral), multi-point pulley tower, soft grip LAT bars (7 pulley positions), folding foot holder, telescoping squat stand with 3 height positions and folding platform |
| Rolling Range | 40" (1.0 m) |
Resources
Warranty
- Commercial Warranty
- Frame - 5 years
- Parts & Upholstery - 1 year
- Foam & Rubber - 90 days
- Warranties outside the US may vary. Contact your local authorized distributor for details.
- Shipping: Weight: 265 lbs (including pallet)
- Shipping Size: 60" x 30" x 25" (including pallet)
