CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
Mobile or fixed mount design

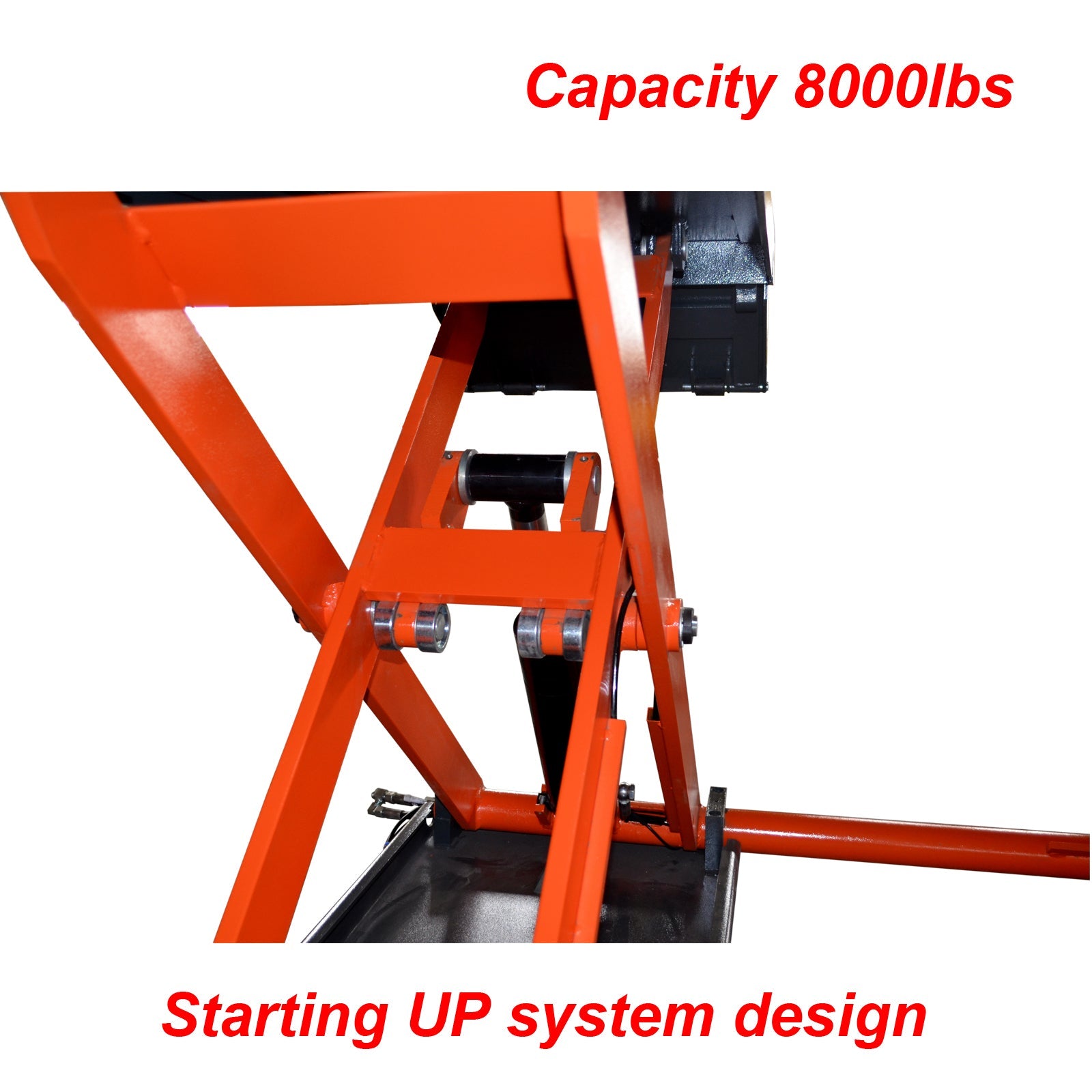

Starting-up system design

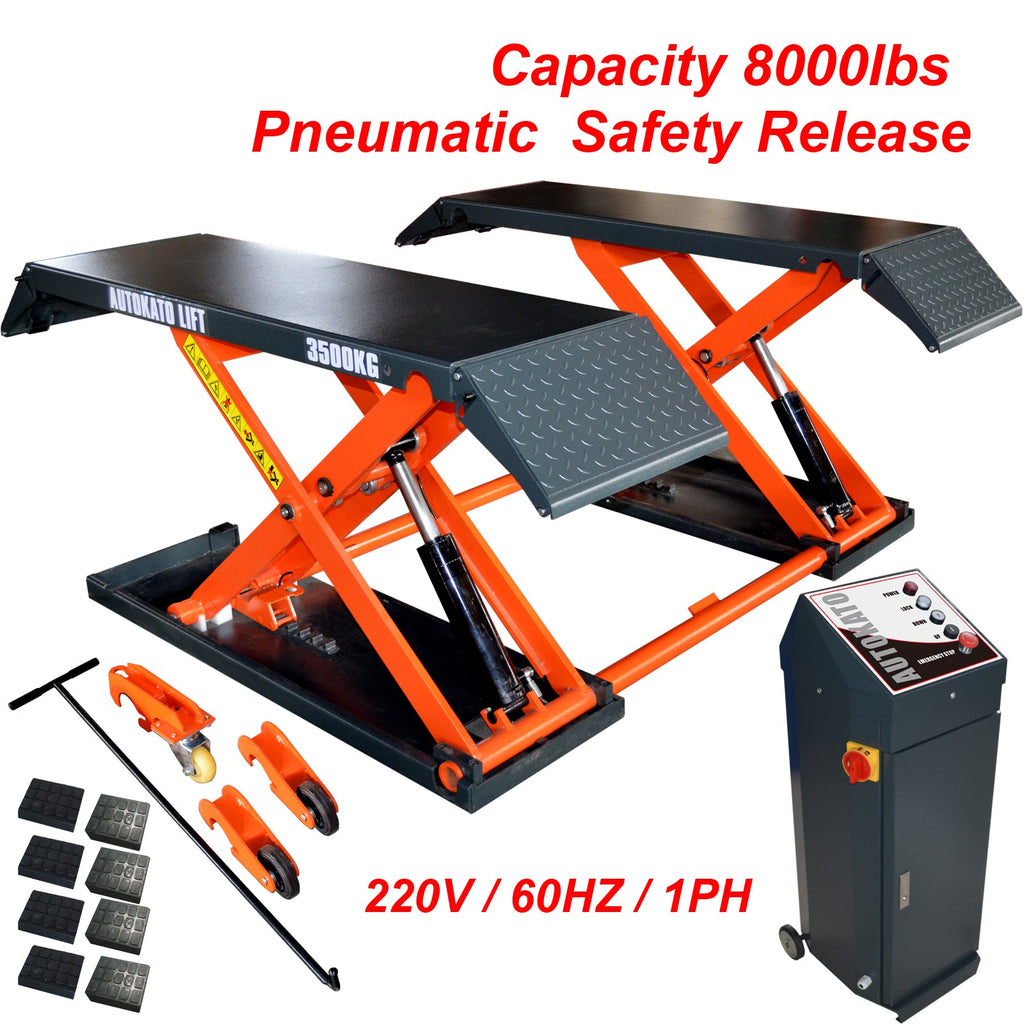

Pneumatic safety release
24V safe control system
Height limit switch
Composite rubber lifting blocks included
Comes with self-lubricated bushing and bearing

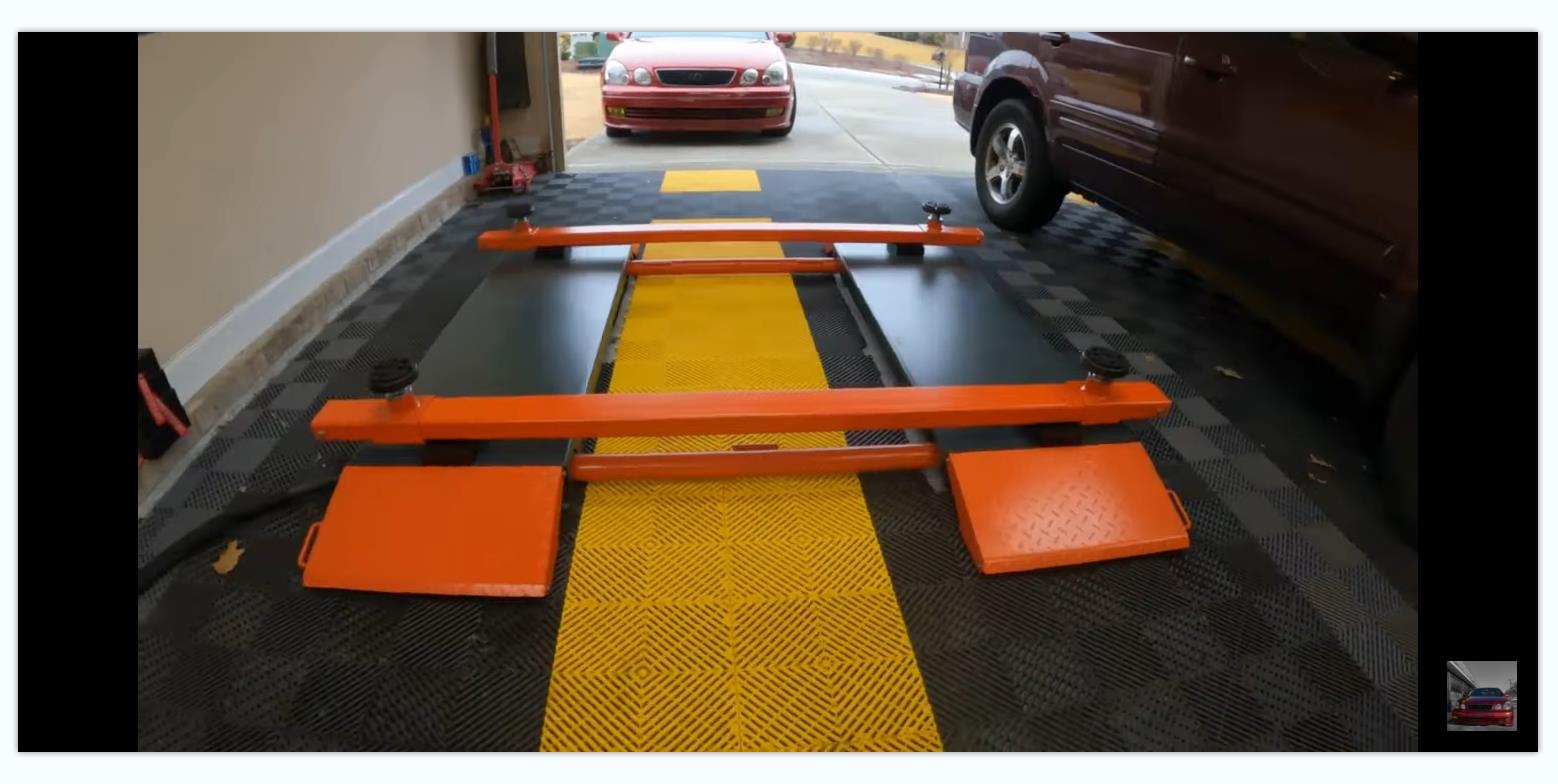

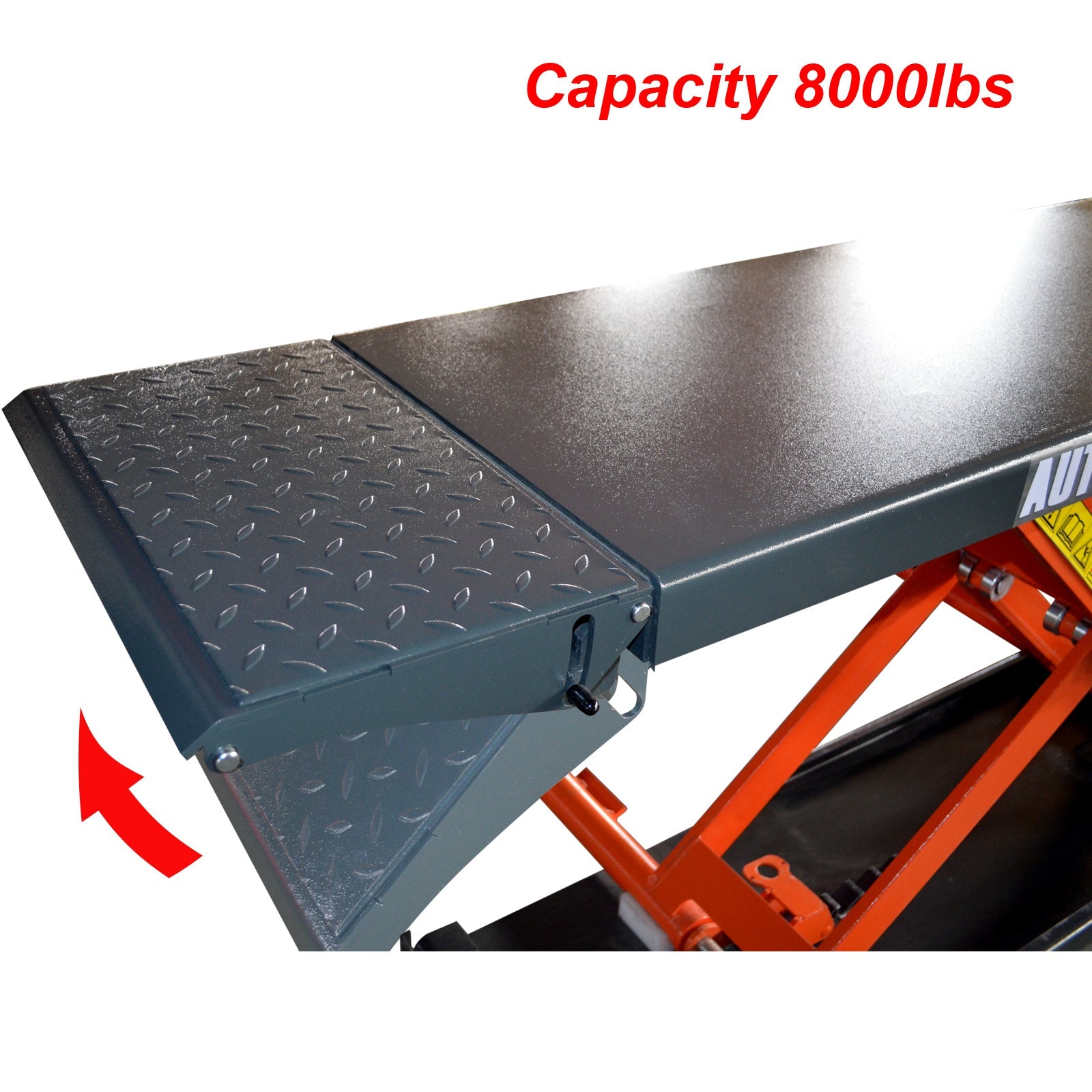

Drive-up ramps lock design as platform extension for long vehicles
Portable, mobile kit included making the lift move in your garage easily
Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH
The unit need to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

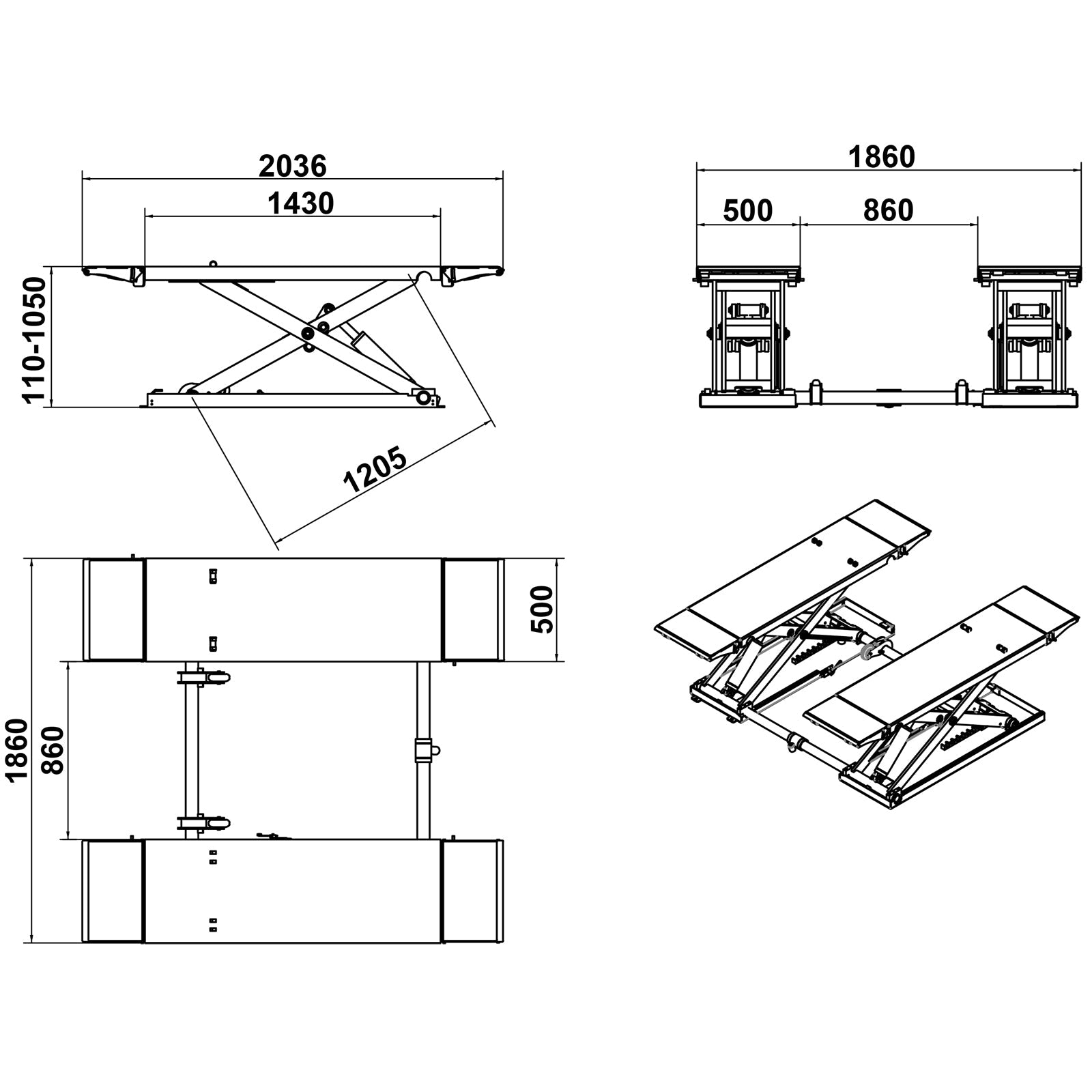

Lifting Capacity
8000lbs.(3500KG)
Max. Lifting Height
41.25"/1050mm
Min. Height
4.25"/110mm
Platform Length
56.25"/1430mm
Length Overall
80"/2036mm
Platform Width
19.5"/500mm
Width Overall
73.25"/1860mm
Motor
110/220VAC/60HZ/1PH
Net Weight
1213lbs/550KG
