*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
11000lbs lifting capacity.
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

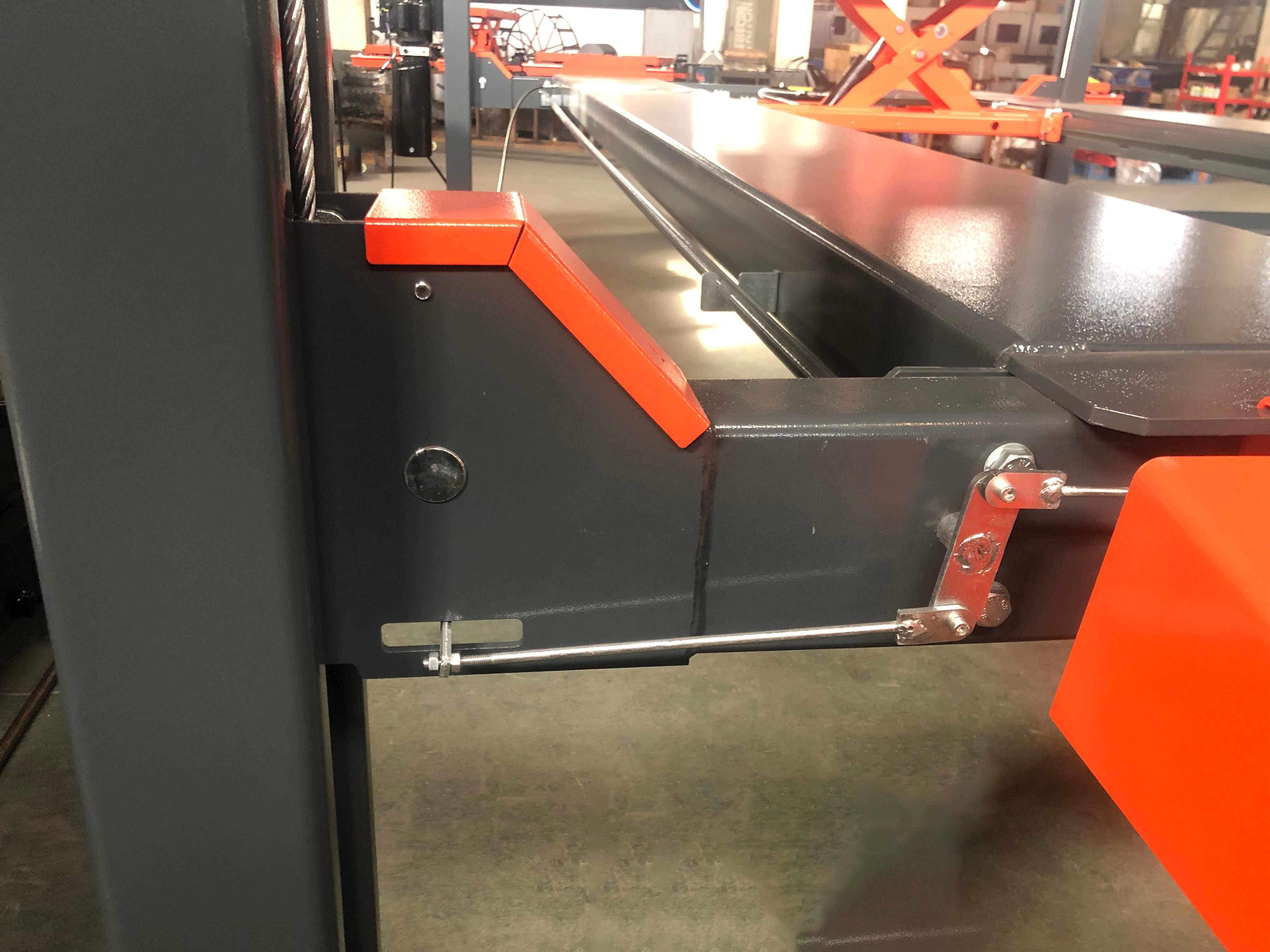

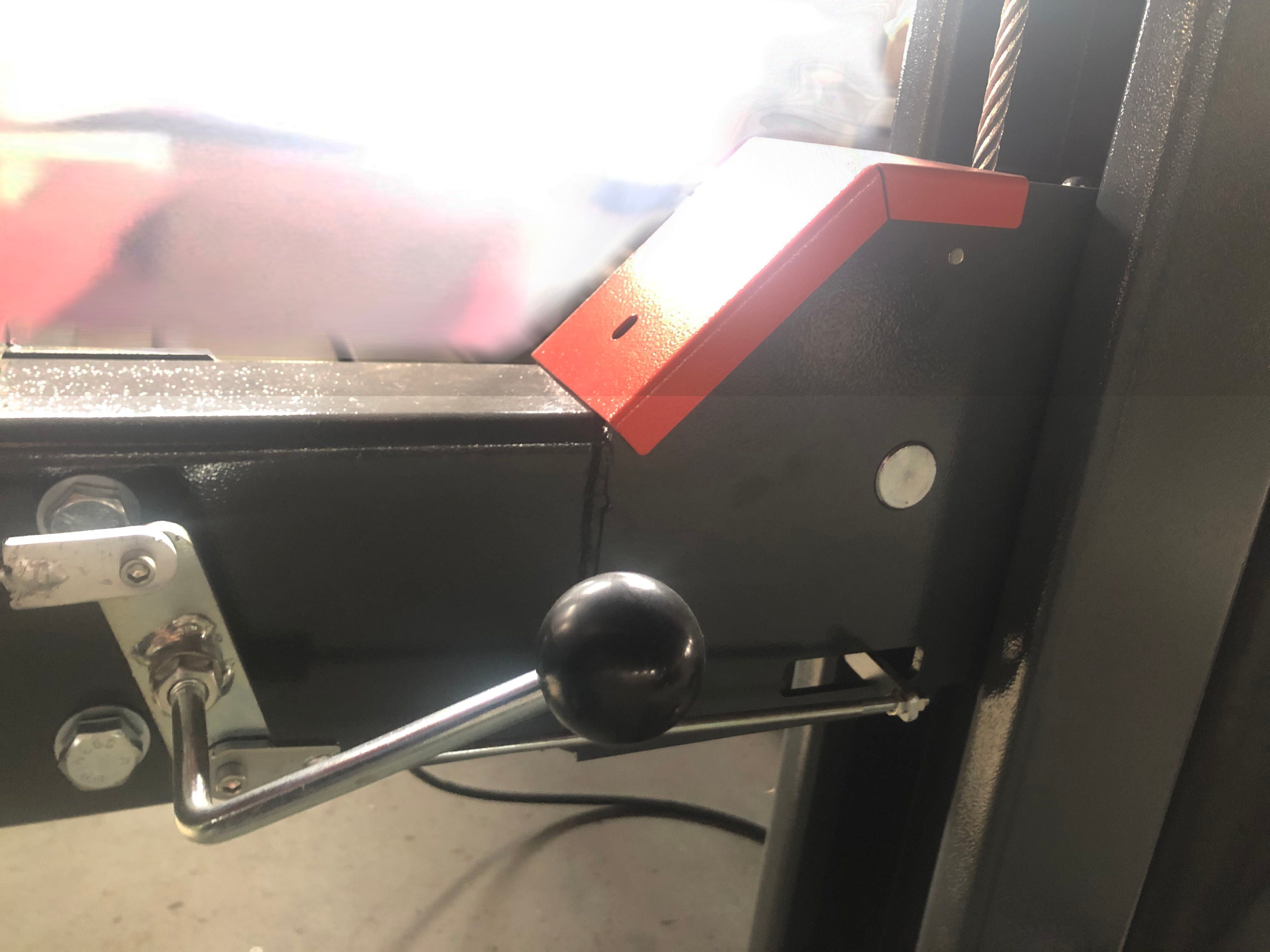

Single Point Manual Safety Lock Release

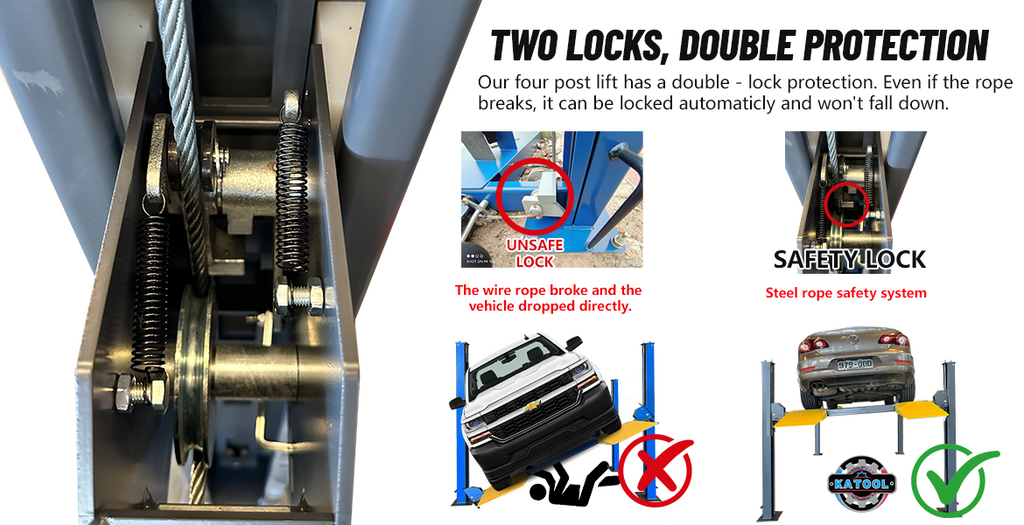

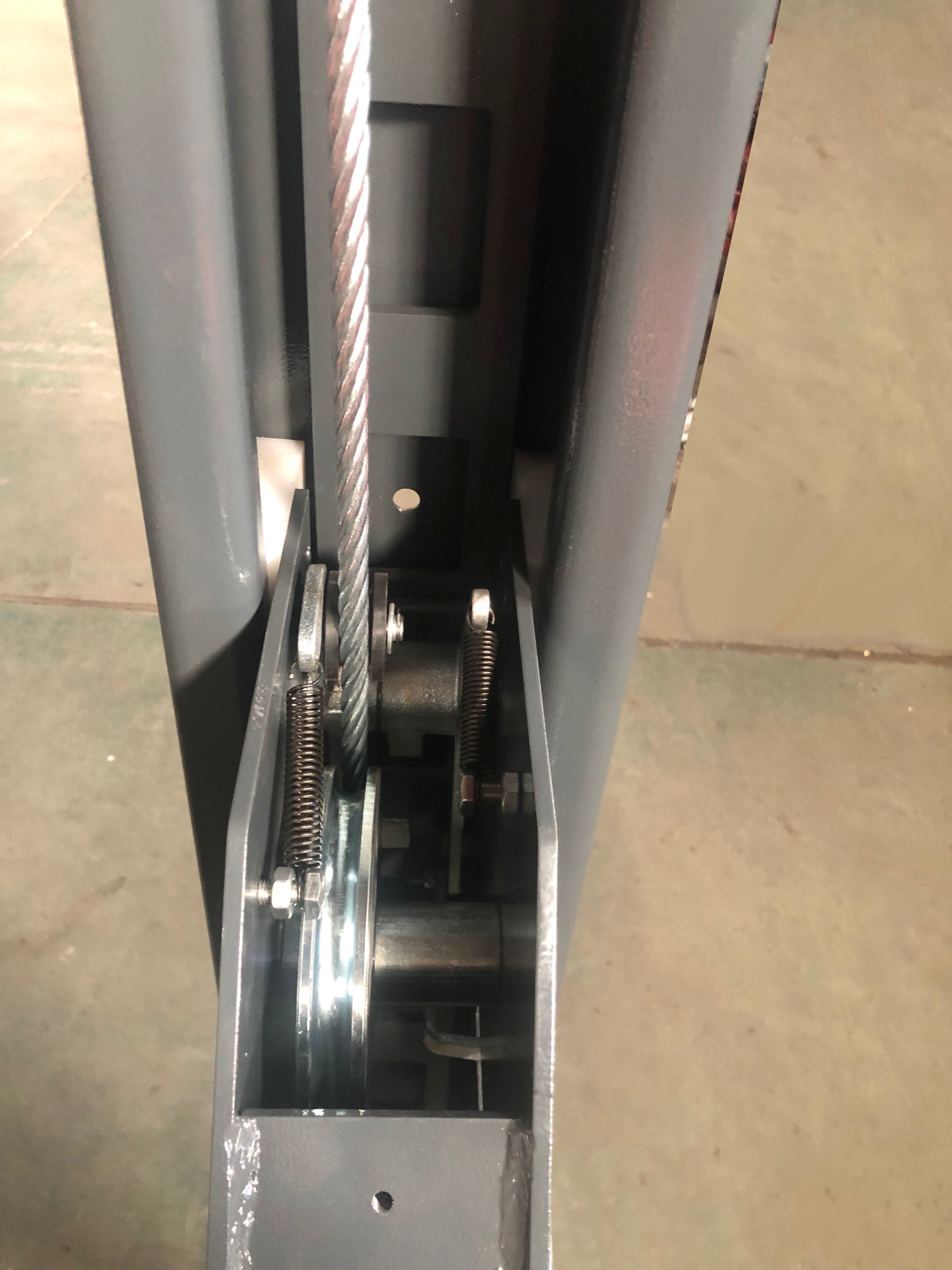

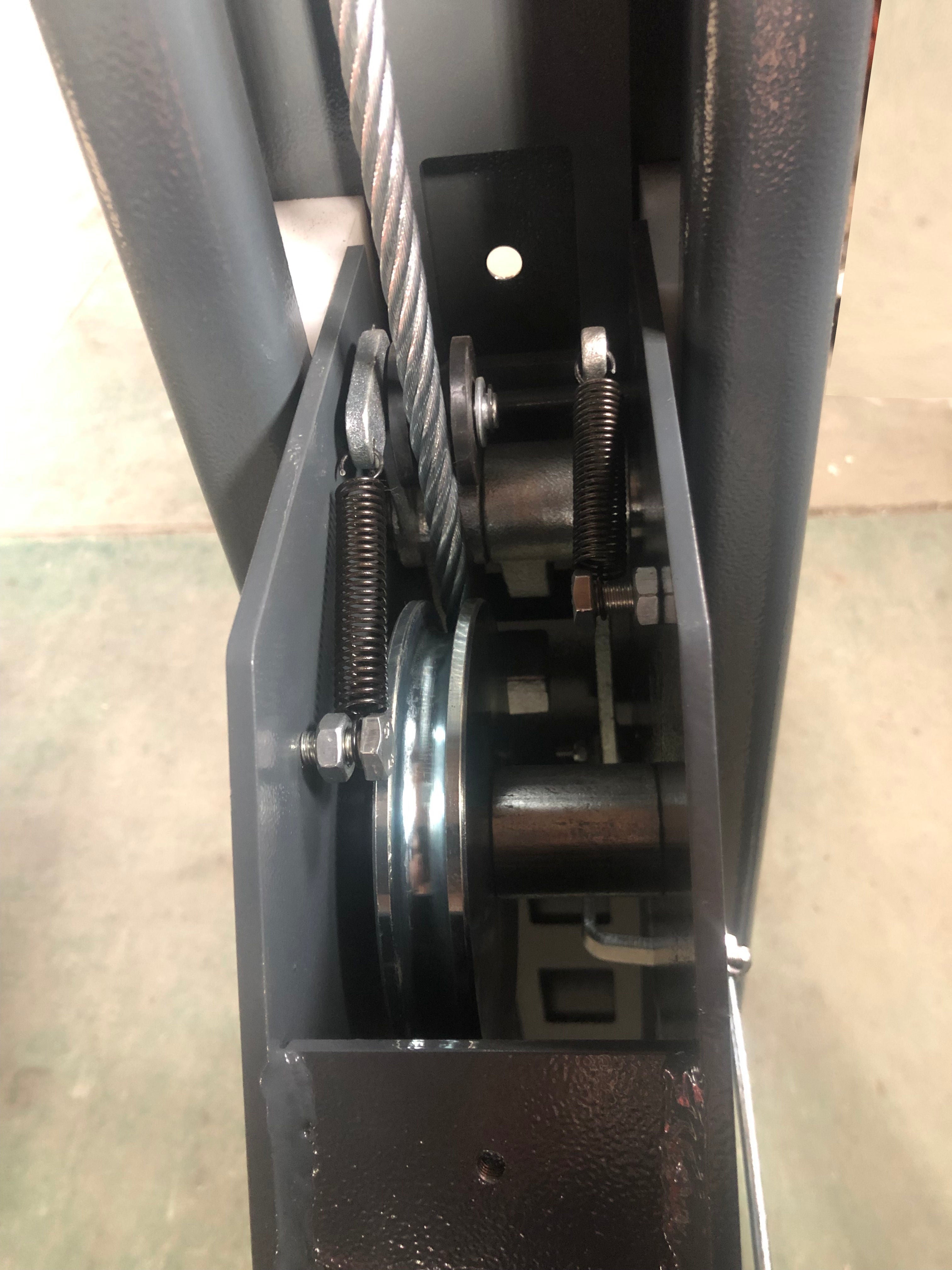

Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
Power side column can be installed at both sides, front or rear.

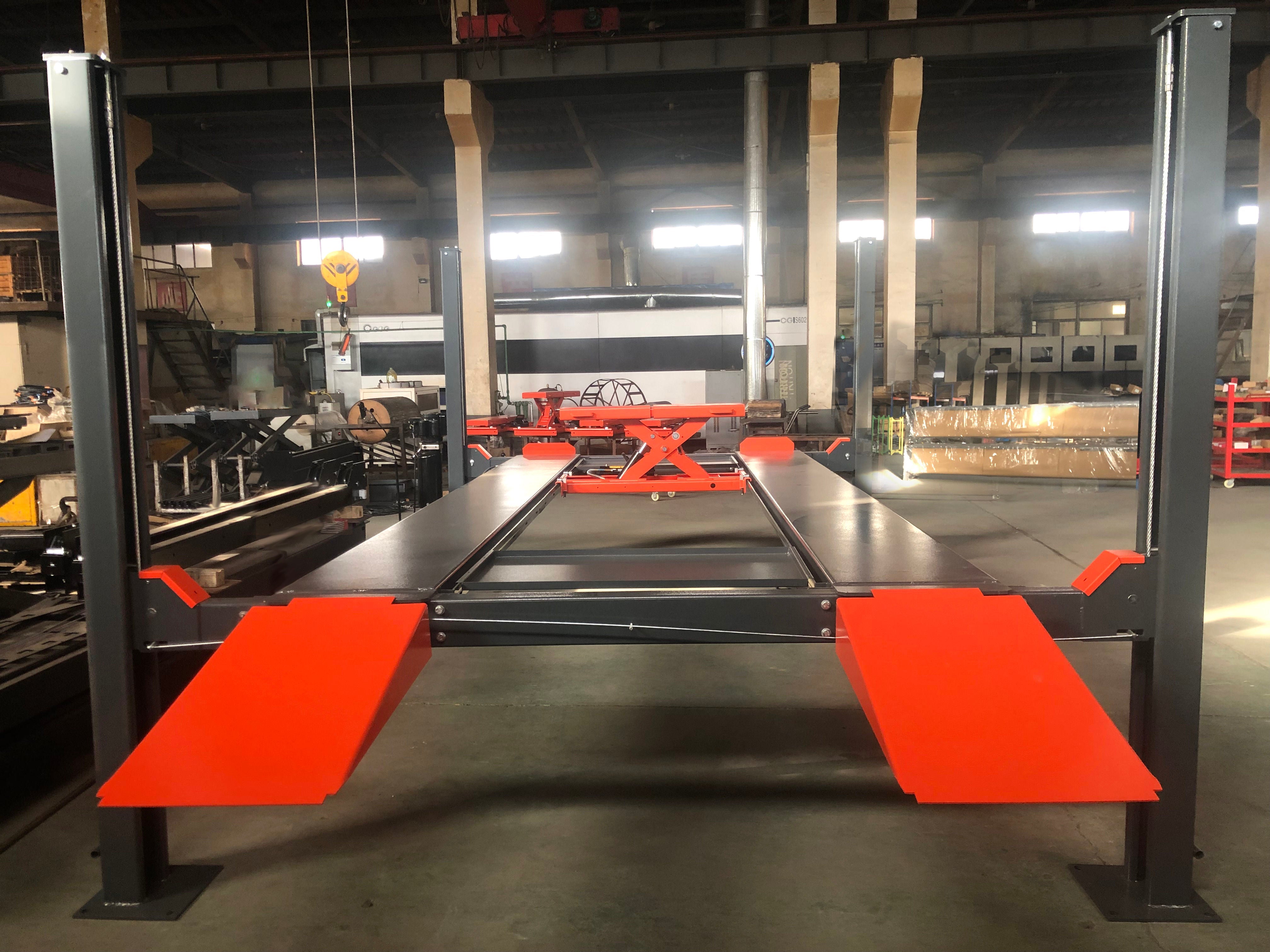

Non-skid coated platforms and adjustable safety lock ladders.
Optional caster kit for moving the lift around, and optional rolling jacks.
*Rolling jacks and casters can be purchased separately but are not included. *
Comes with two drip trays and a jack tray.
High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional)
Customer must have forklift for unloading.

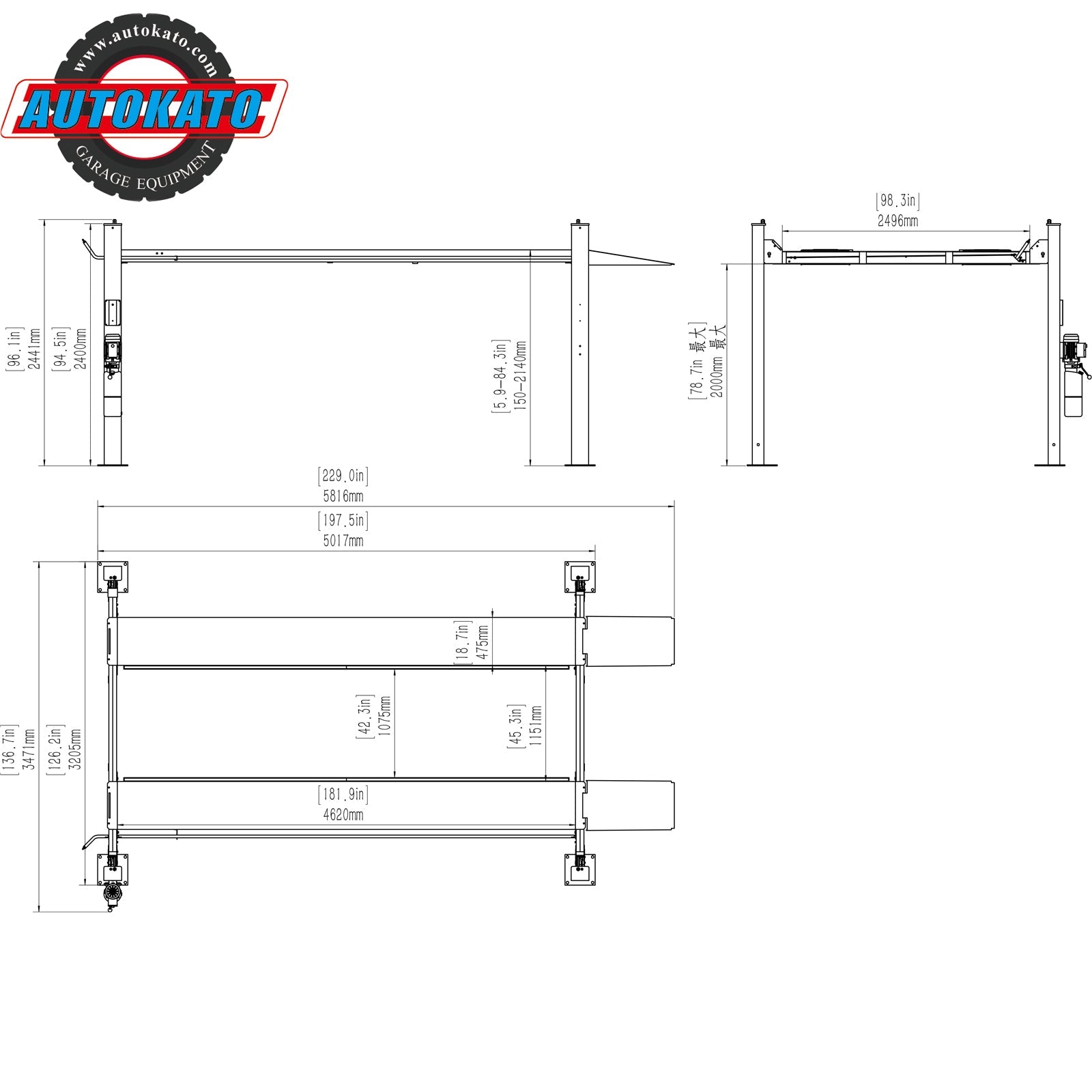

Lifting Capacity
11000 lbs. (4990KG )
Max. Lifting Height
84.25" / 2140mm
Lifting Time
83s Up / 40s Down
Height of Posts
94.88" / 2410mm
Width Overall
126" / 3200mm
Length Overall
229.73" / 5835mm (with Ramps)
Inside Columns
112.81" / 2865mm
Min. Runway Height
6.2" / 157mm
Motor
110VAC/60HZ/1PH
Net Weight
2116lbs / 960KG
Pick-up location
CA Warehouse: 19465 E Walnut Dr. N CITY OF INDUSTRY CA 91789
TX Warehouse: 2469 FM 359 South Rd, Building B, Suite E, Brookshire, TX 77423
GA Warehouse: 88 Clyde Alexander Way, Pooler GA 31322
IL Warehouse : 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
NJ Warehouse: 99 CAVEN POINT ROAD UNIT A JERSEY CITY NJ 07305
Please feel free to contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.
12 Months All Parts Warranty!
