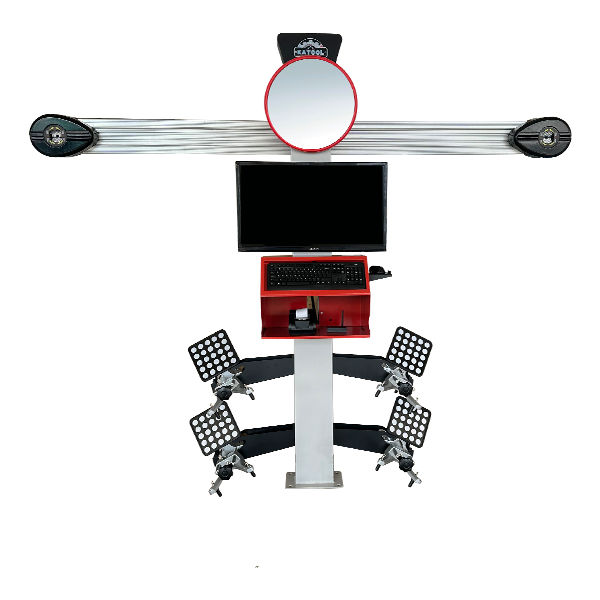

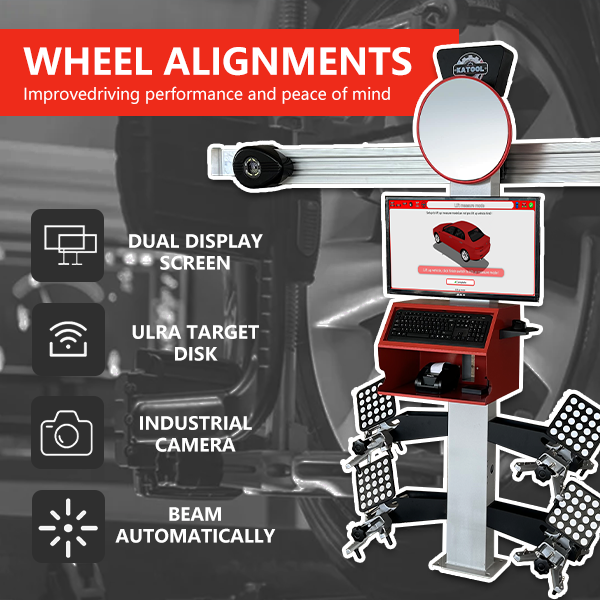

Item description from the seller
Matters needing attention
The operator of the instrument must pass the training of the company, and
can operate after passing the training.
The operator must have some basic knowledge of computer application.
The operator must understand the basic knowledge of four-wheel
positioning.

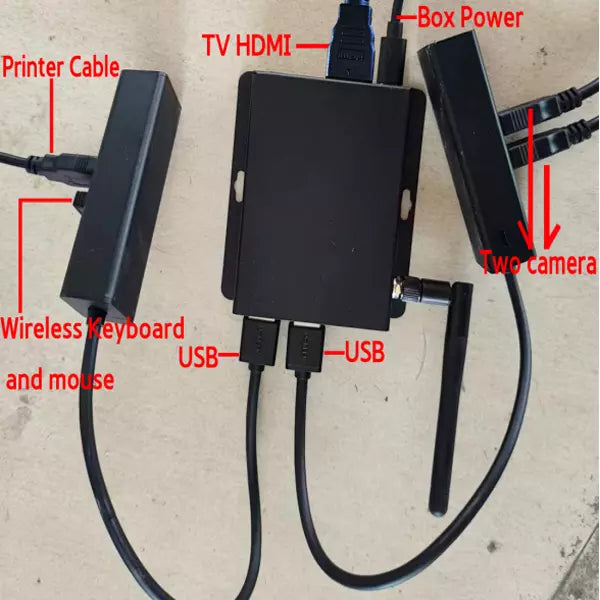

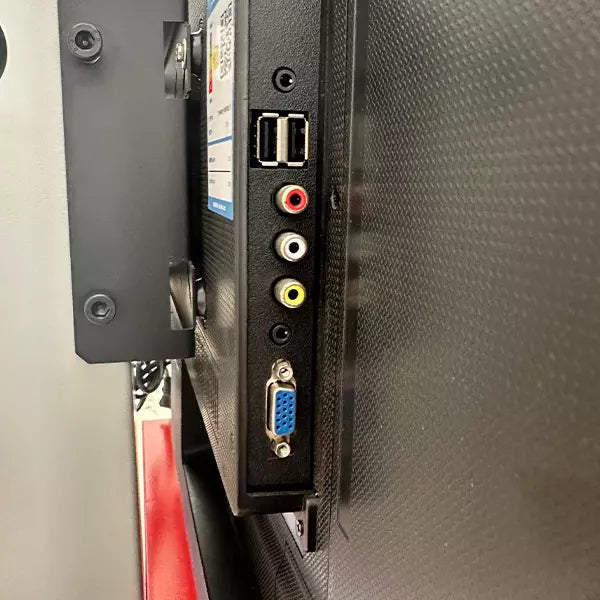

Check whether the power connection line contact is reliable, whether there is
damage.
If the power supply voltage is unstable, please equip your own AC regulator.

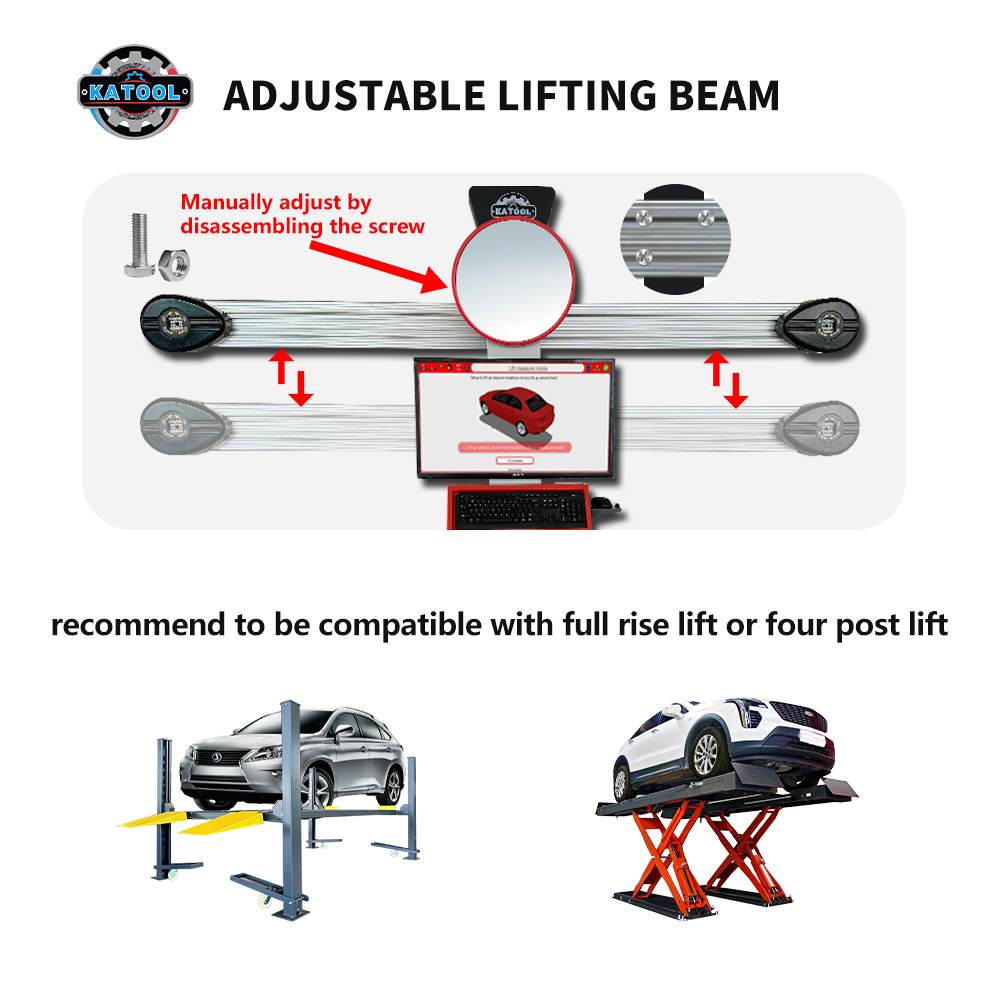

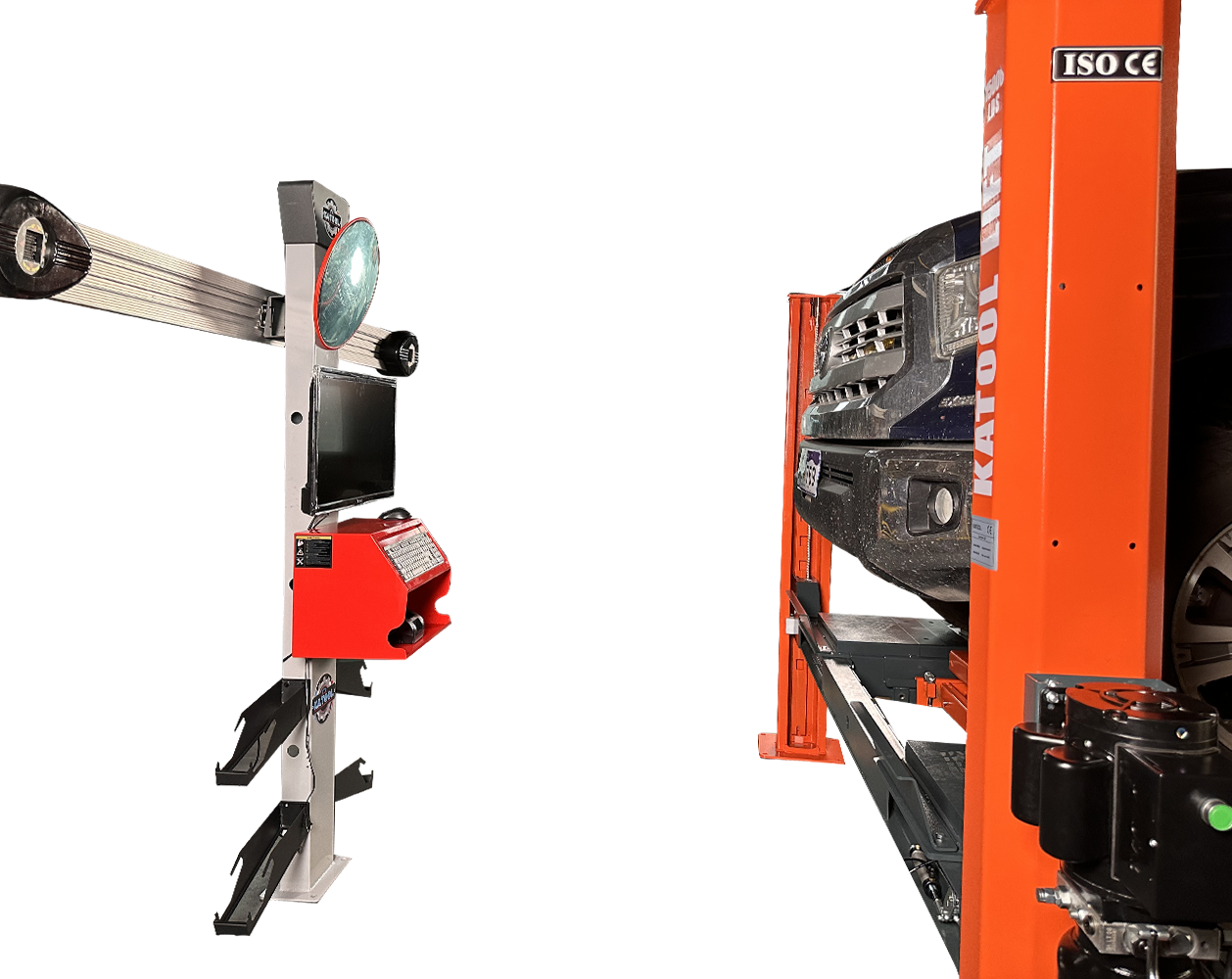

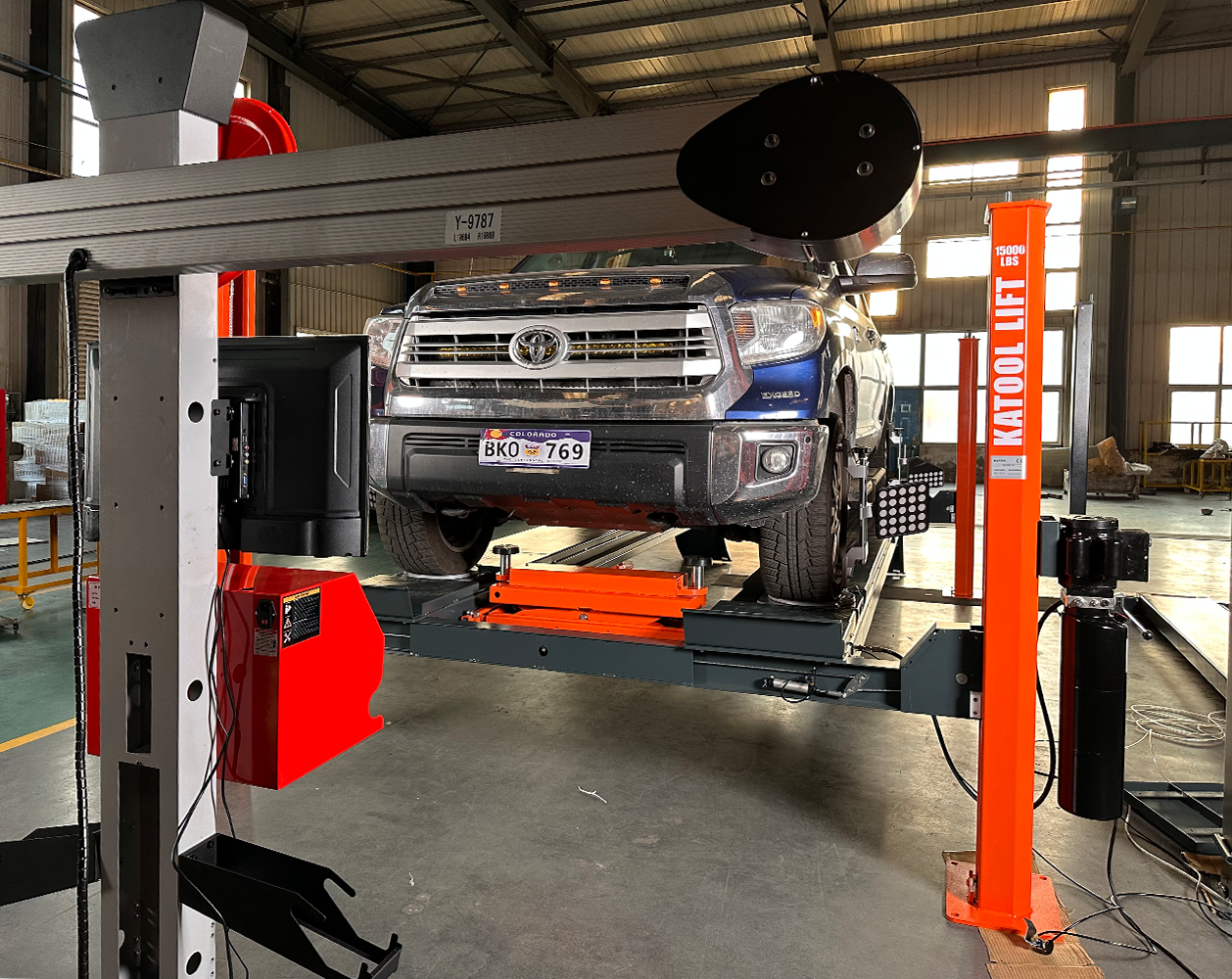

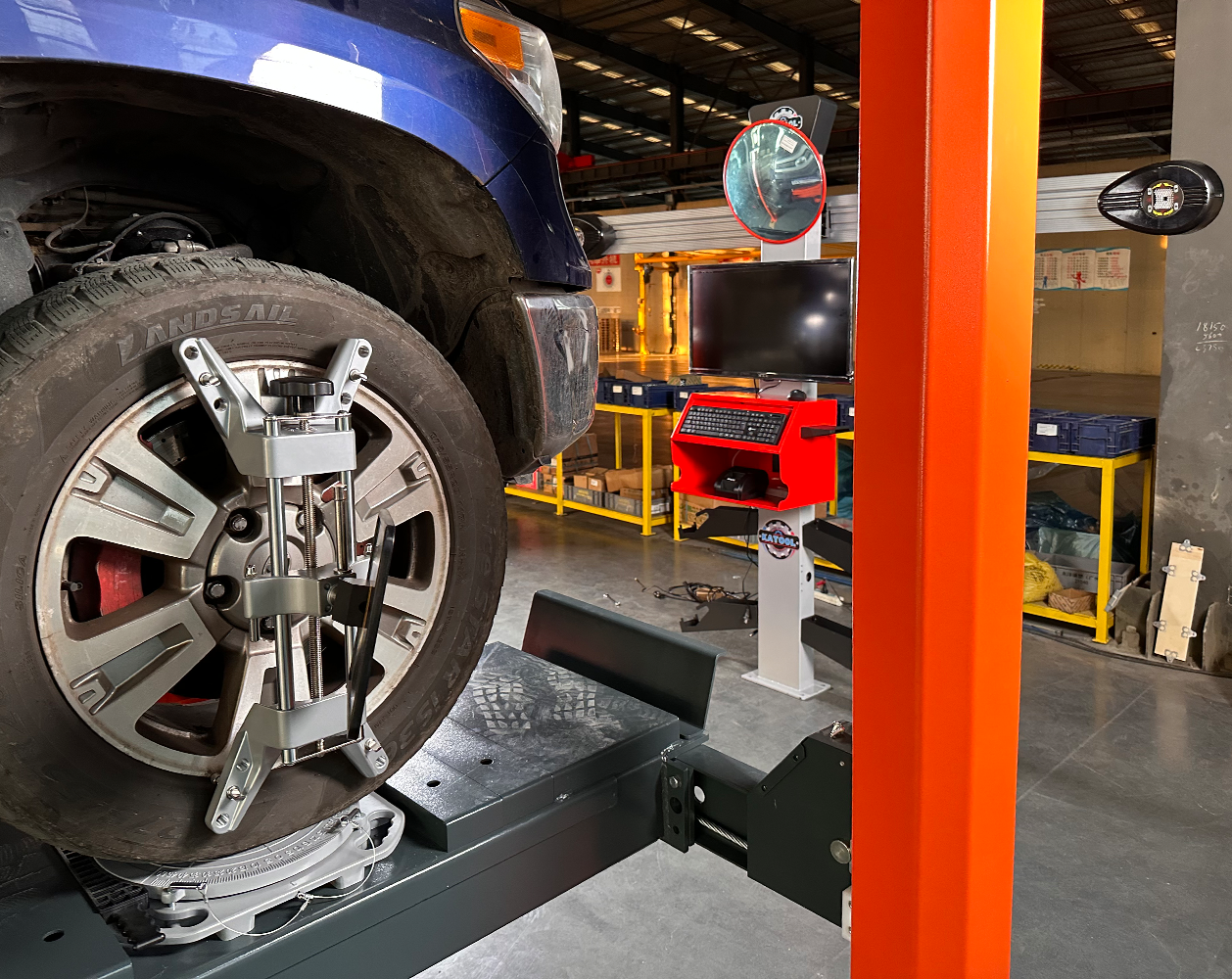

Check whether the car lift is firm and level regularly to ensure the correct test
and the safety of personnel.
Remove obstacles around the car lift so as not to affect the operation.
Check all loose bolts and parts at the end of service and tighten them up for
safety.Four-wheel locator can not be placed on a vibrating object or tilted, should
avoid direct sunlight or humidity.
Four-wheel locator belongs to precision testing equipment, there are
sensitive components, in the process of use should be taken gently, do not
throw random, otherwise light will lead to shell deformation, heavy will lead to
internal components failure, affect the normal use.
Avoid splashing liquid on the surface of the four-wheel locator, lest liquid
enter the system and cause permanent damage.
After use, please cut off all power supplies.

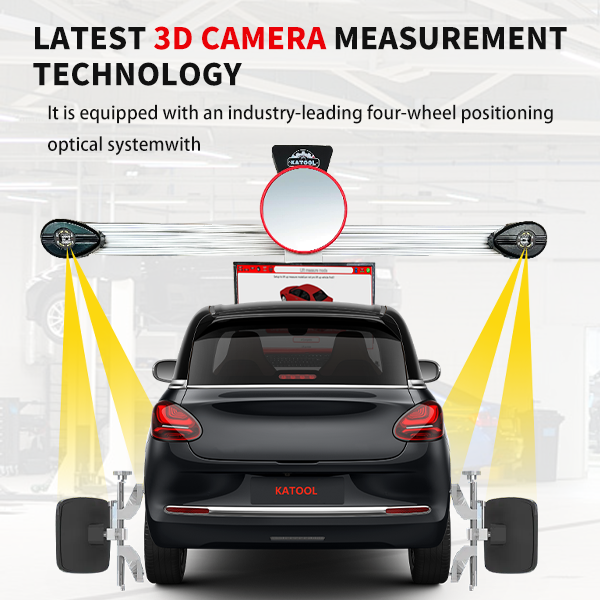

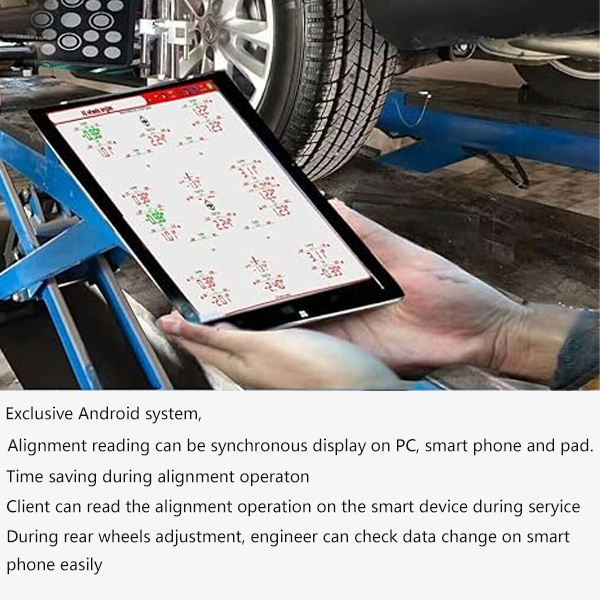

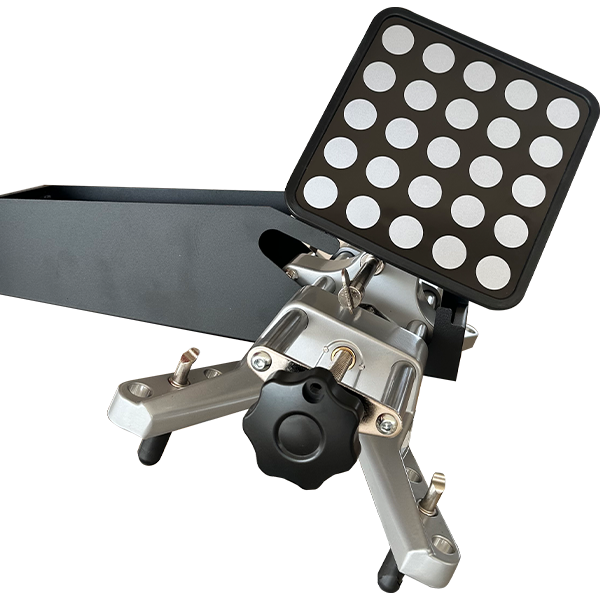

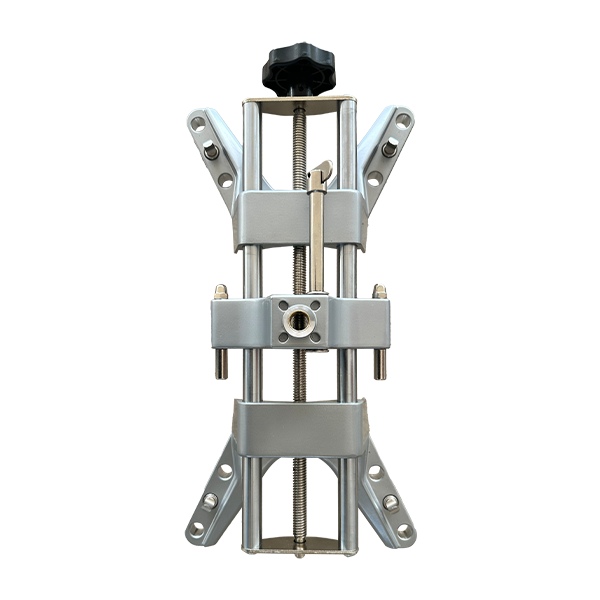

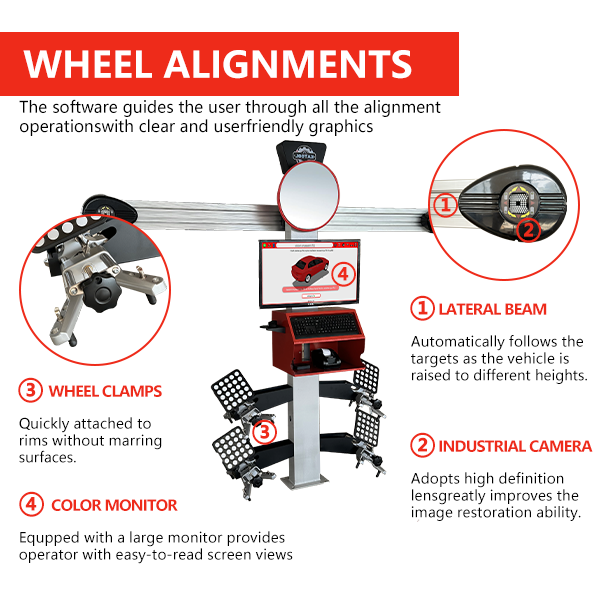

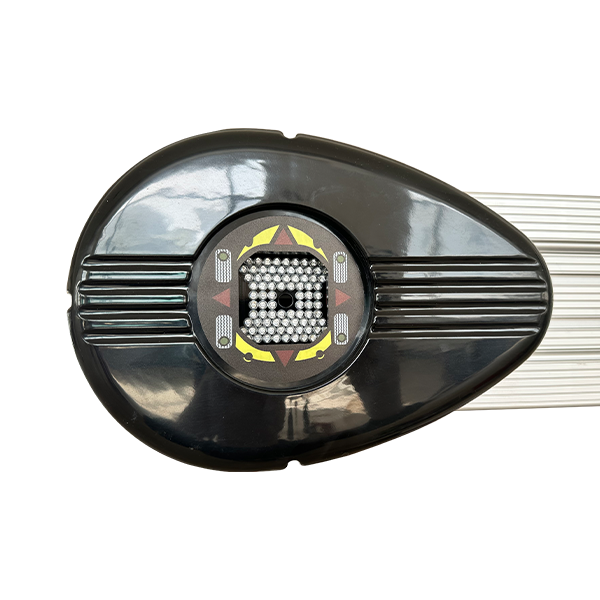

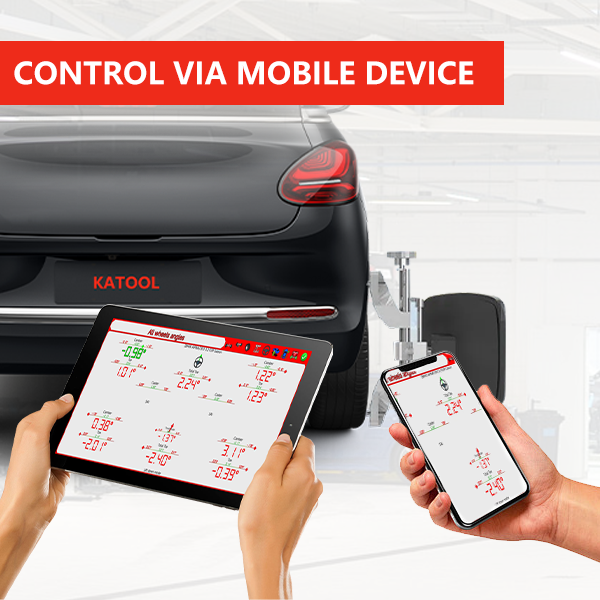

Four-wheel locator is tested through the method of image, do not let the
strong light to the sensor interference, and should avoid the object between the
sensor blocking the light.
Excerpt parameters:
Measurement parameters, range and accuracy
1 Total front beam Angle
Measuring range: ± 6 °.
Accuracy: ± 4' in ± 2 ° range, ± 10' in other ranges.
2. Front beam Angle of single wheel
Measuring range: ± 3 °.
Accuracy: ± 2' in ± 2 ° range, ± 5' in other ranges.
3. Wheel camber
Measuring range: ± 10 °.
Accuracy: ± 2' in ± 4 ° range, ± 10' in other ranges.
4 kingpin rear Angle
Measuring range: ± 15 °.
Accuracy: ± 2' in the range of ± 12 °, ± 10' in other ranges.
5 kingpin incliner
Measuring range: ± 20 °.
Accuracy: ± 6' in range of 0 ° -- +18 °, ± 10' in other ranges.
12
6 thrust Angle
Measuring range: ± 6 °.
Accuracy: ± 2' in ± 2 ° range, ± 10' in other ranges.
7 axis Angle
Measuring range: ± 6 °.
Accuracy: ± 2' in ± 2 ° range, ± 10' in other ranges.
8 Indicates value requirements
8.1 Display value resolution
The angular resolution is 1', where the forward beam value is 1' in Angle or
0.1mm in mm.
8.2 Zero drift
Zero drift is not greater than 4' within 30min.
8.3 Indicating value error
The value error is ± 4'.
8.4 Indicate value stability
The indicated stability is ± 2' within 10s.
Power Supply
Working Temperature
