Description

The Designer Cut Series is Elite Screens selection of pre-cut projection screen material swatches. The swatches are prepared for use in custom solutions and other improvised installations according to the integrator's needs.

*We consider our impact screens a wearable item and the life of them will vary according to their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen. If possible, use new golf balls. Some creasing may occur but may be removed with a steamer and/or light ironing set to no higher than Polyester.

Product Features

Screen Material Options

• A4K, ultra-fine knitted smooth screen surface that offers excellent audio transparency

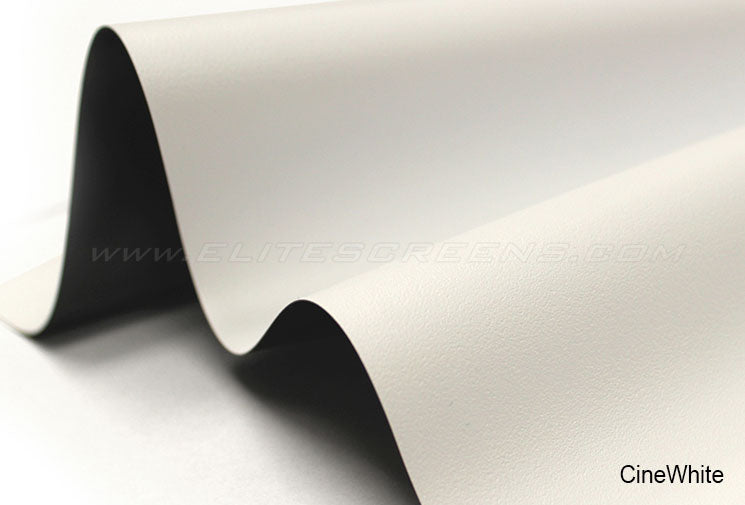

• CineWhite tensioned matte white, 1.1 gain (For light-controlled room home cinema 1080P/4K projectors)

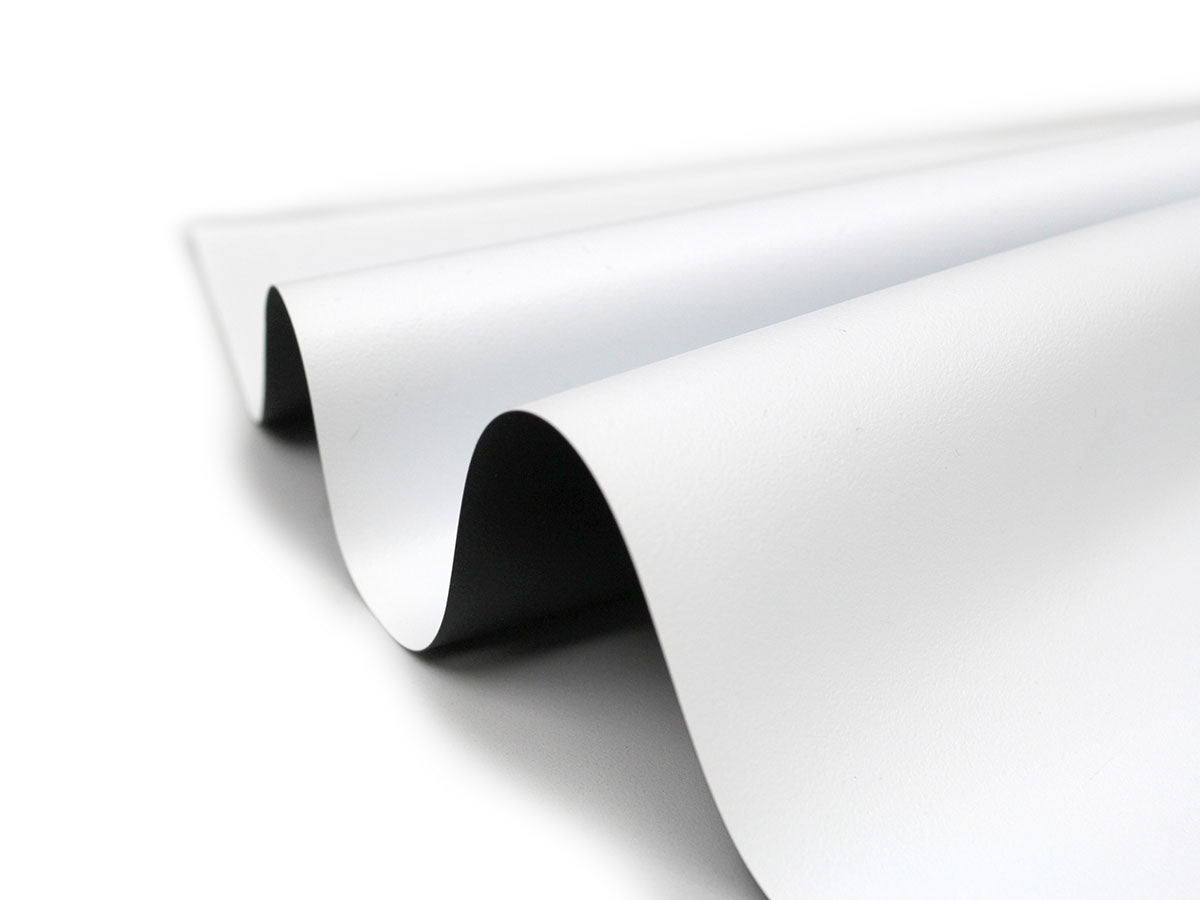

• CineWhite UHD-B ISF certified matte white, 1.3 gain (For light-controlled room home cinema 1080P/4K projectors)

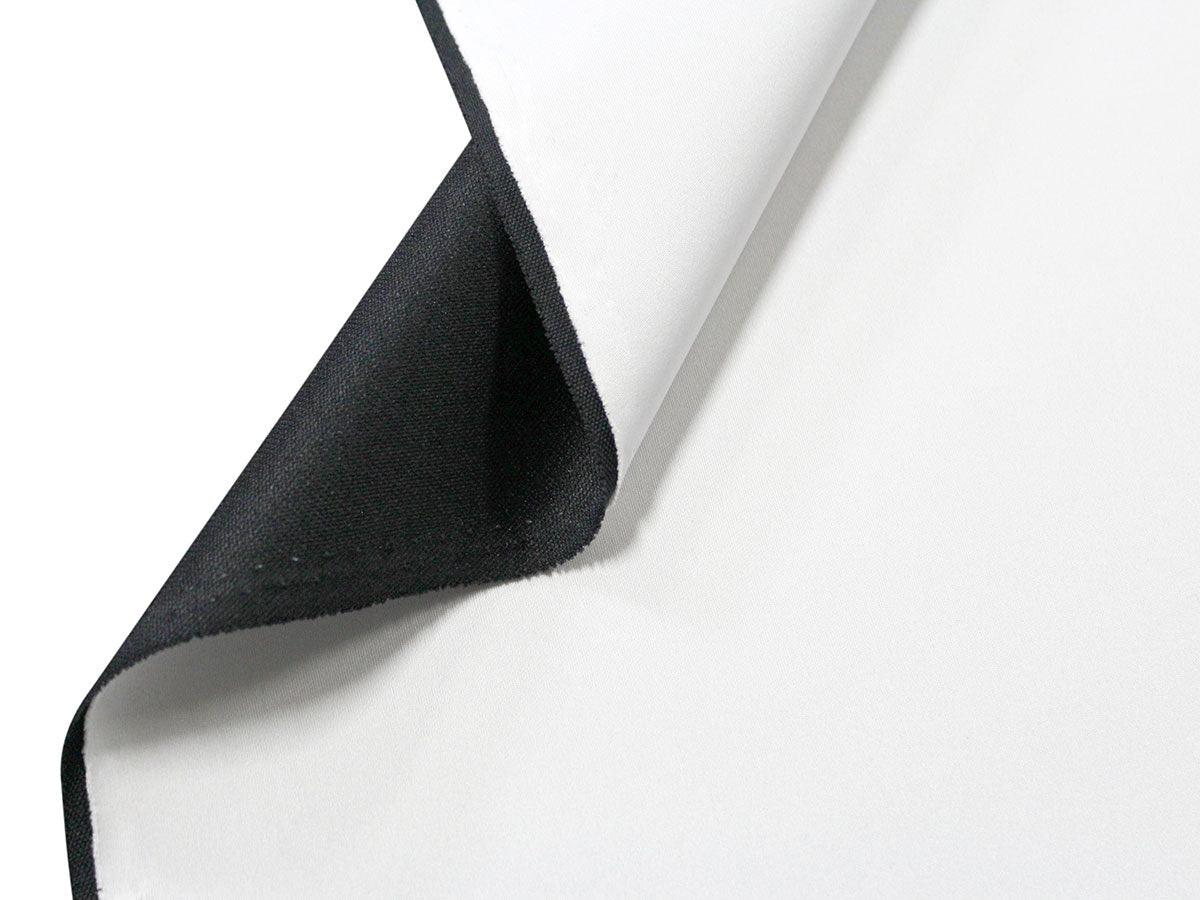

• CineWhite A8K ISF certified multi-layer knitted weave material, acoustically transparent, 1.1 gain (For light-controlled room home cinema 4K/8K projectors)
• CLR 2 Ceiling light rejecting ISF certified material, 0.8 gain, absorbs up to 90% of overhead lighting (For ambient lit or light-controlled rooms)
  • Retro-Reflective Material for Ultra-Short and Short Throw Projectors ONLY. (NOT Compatible with Standard Throw Projectors)

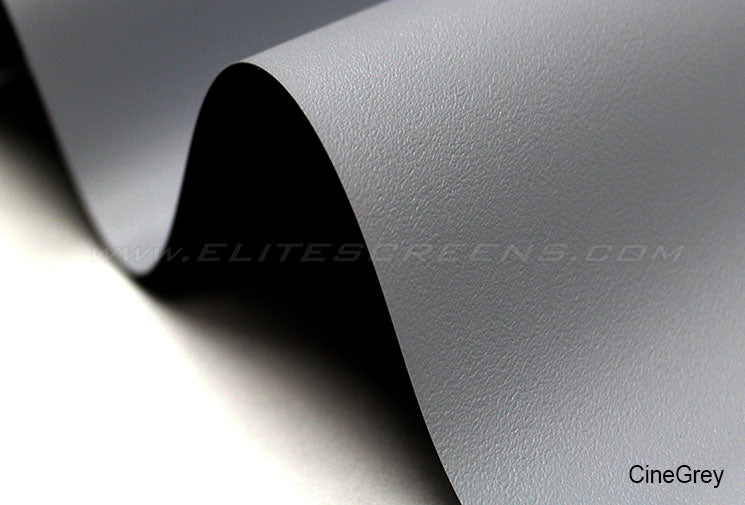

• CineGrey, High Contrast Gray Material, 1.0 gain For improved contrast ratio and black levels

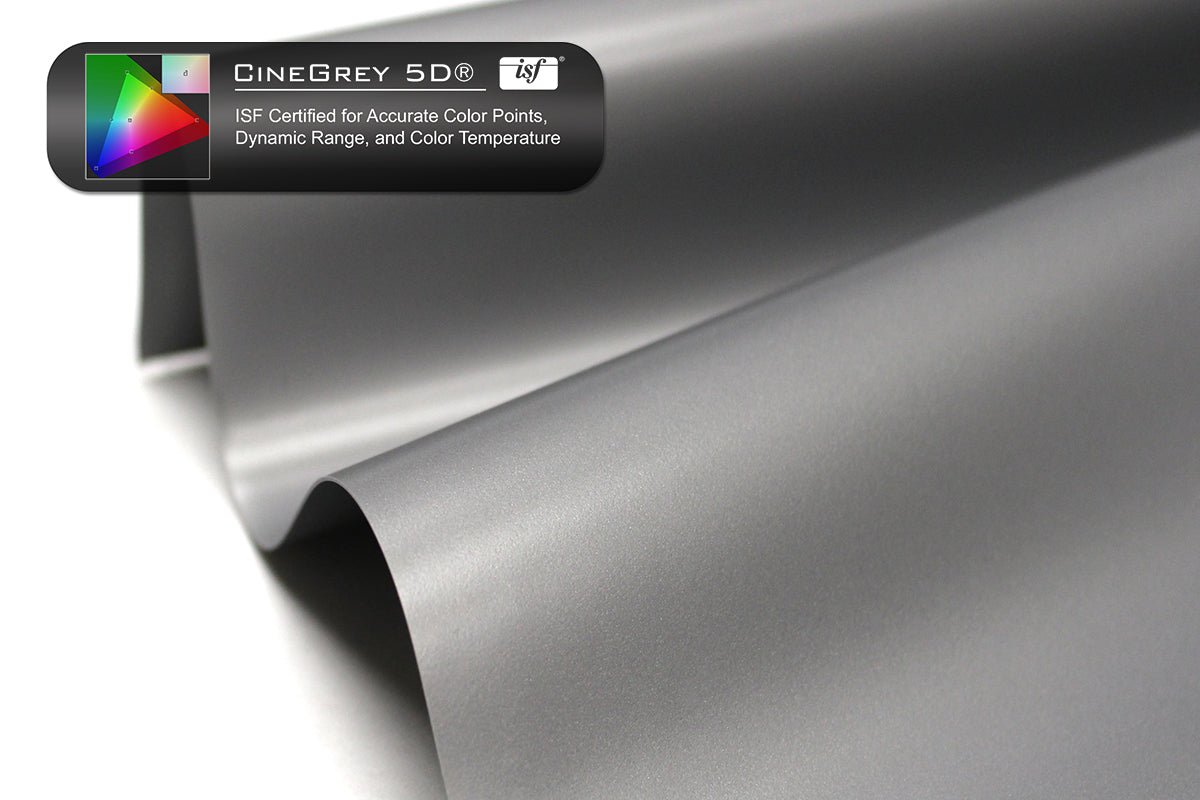

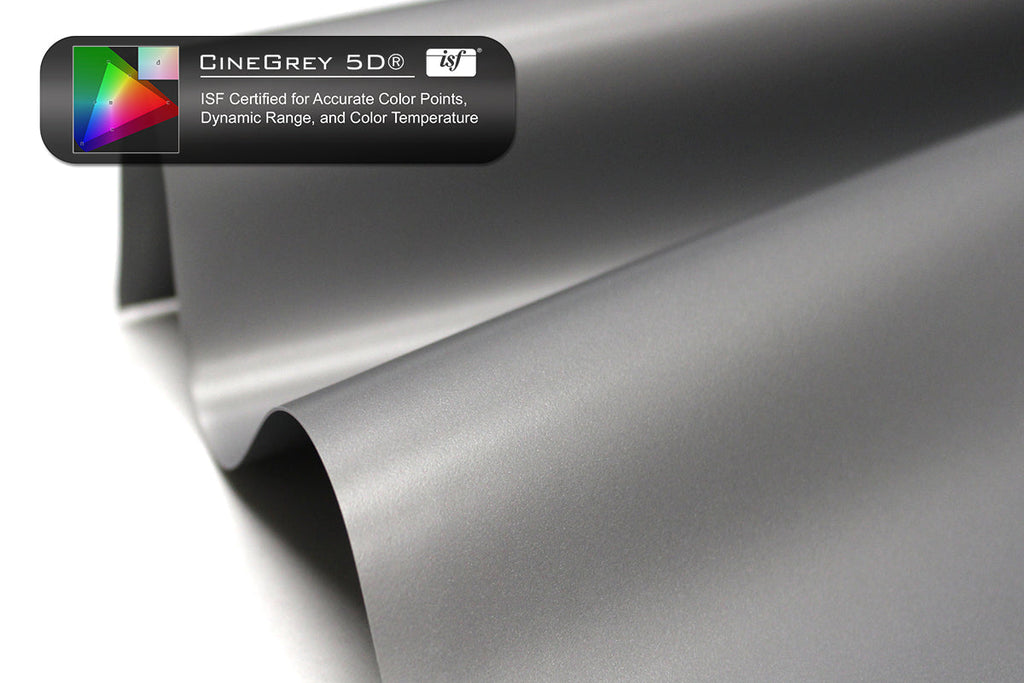

• CineGrey 5D, ambient light rejecting ISF certified, 1.5 gain (For light-controlled room or ambient light room home cinema 1080P/4K projectors)
  • Angular Reflective Material for Standard œLong Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)

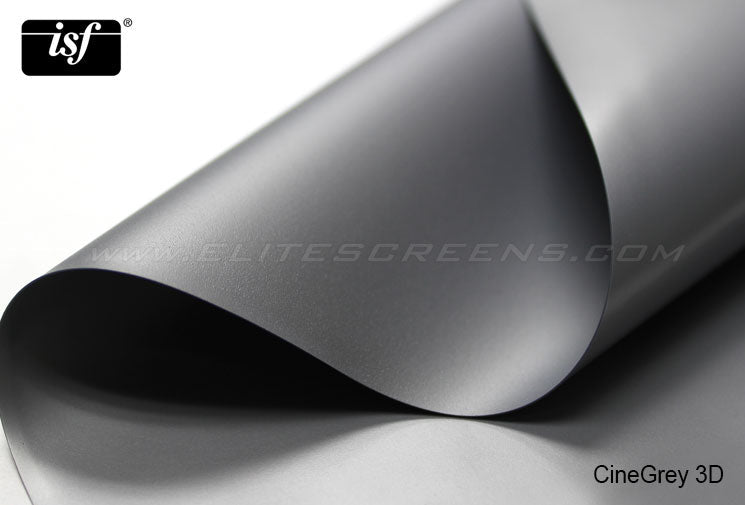

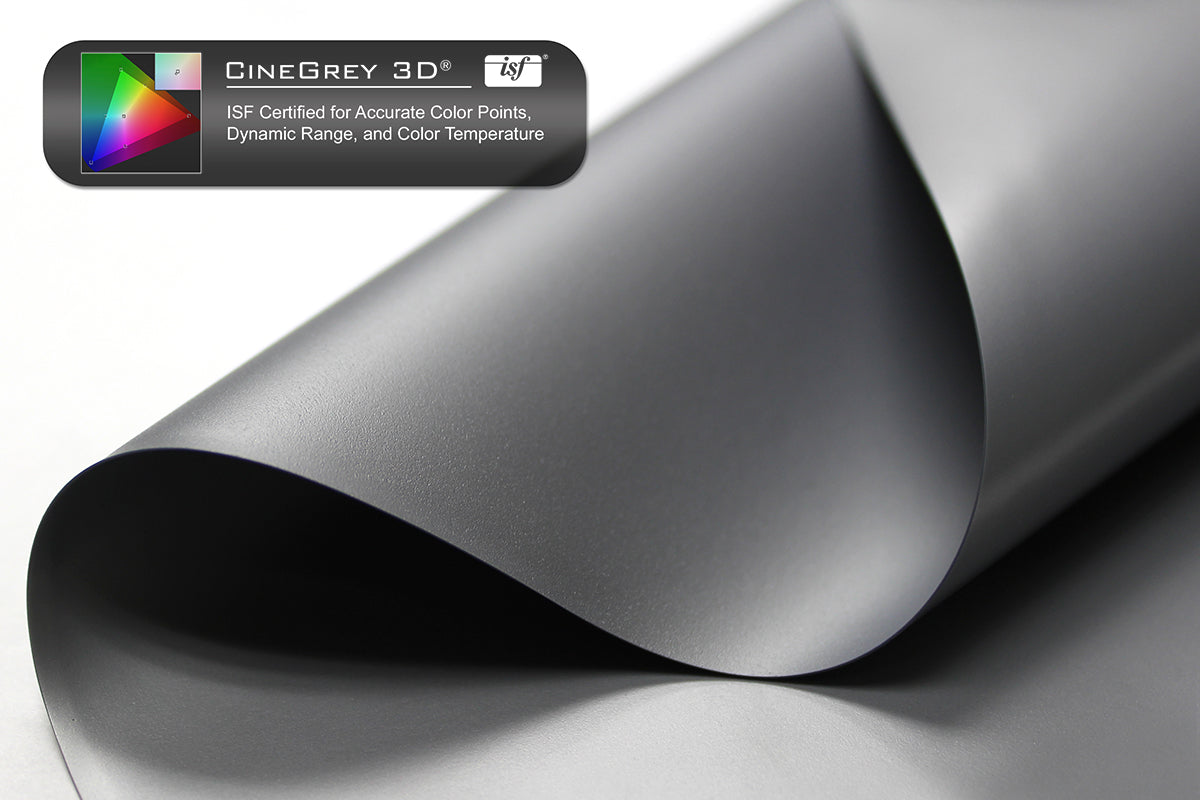

• CineGrey 3D, ambient light rejecting ISF certified, 1.2 gain (For light-controlled room or ambient light room home cinema 1080P/4K projectors)
  • Angular Reflective Material for Standard œLong Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)
• CineGrey 4D AT, Acoustically Transparent front projection Ceiling Ambient Light Rejecting (ALR/CLR) material, ISF certified,1.1 gain.
  • Angular Reflective Material for Standard œLong Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)
• ImpactWhite A4K, single layer ultra-fine projection fabric designed to withstand impact from sport simulations. (Recommended for short throw projectors)
• ImpactWhite 1145 ISF certified multi-layer knitted material to withstand impact from sport simulations. (Recommended for short throw projectors)
• ImpactWhite 360 ISF certified single-layer tightly woven screen fabric designed to endure golf ball impact and longevity. (Recommended for short throw projectors)

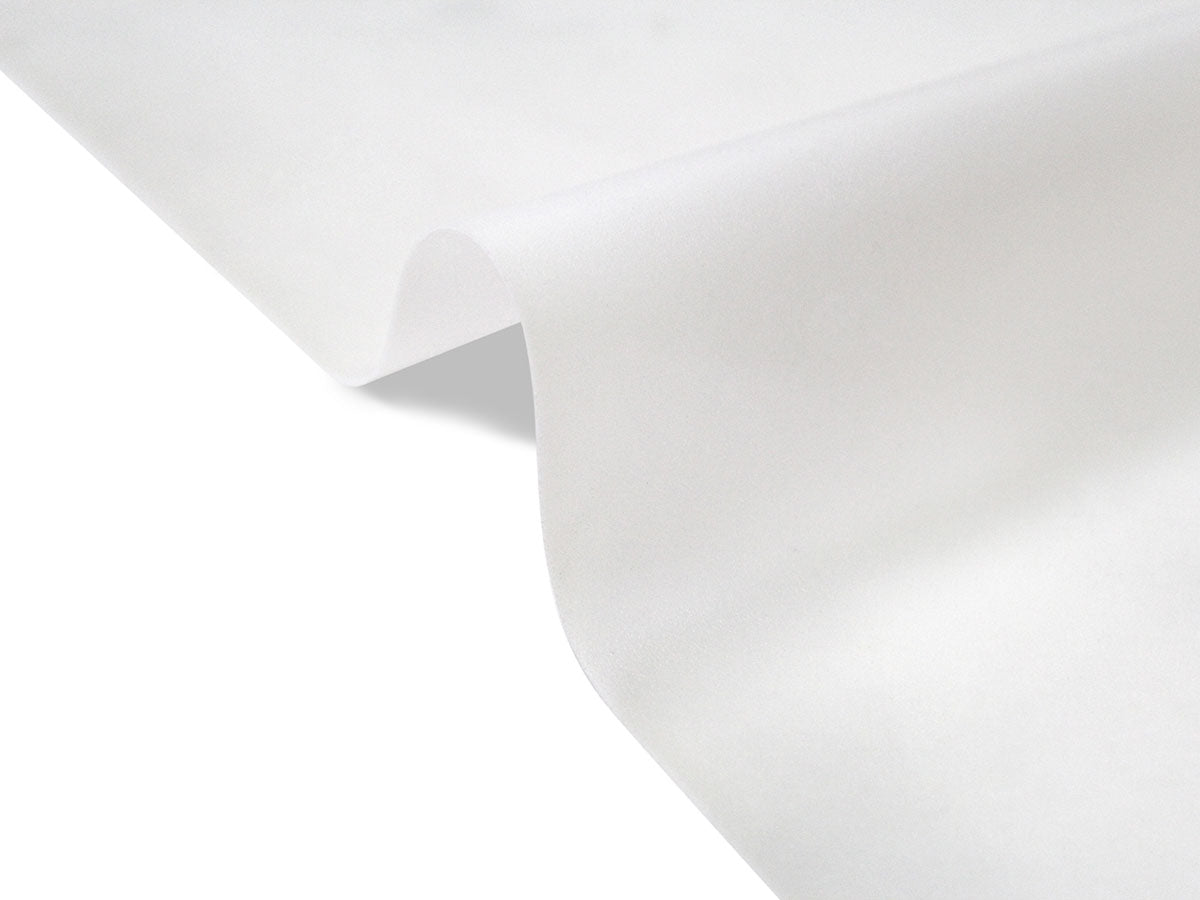

• WraithVeil Dual, transparent 2-directional material, 0.8 Gain (For light-controlled room home cinema 1080P/4K projectors)

Design and Installation

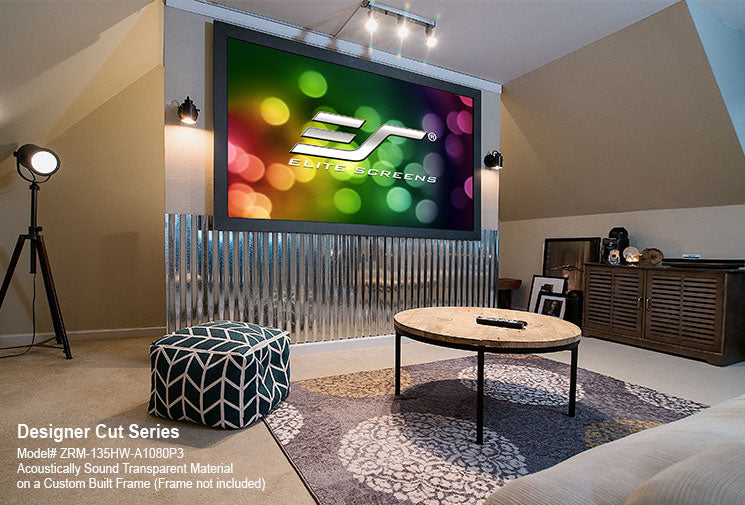

• Pre-cut materials for custom sized architectural or DIY projects
• Rolled material helps maintain a flat and wrinkle-free viewing surface (ImpactWhite 1145 and 360 materials are folded in small box packaging)
• Stretches over a standard or designer made framework
• High-end, industry grade projection materials
• 4K Ultra HD, Active 3D, and HDR Ready

Quality and Reliability

• 2-year limited warranty, and 3-year warranty for ENR-G  Education, Non-profit, Religious and Government/Military organizations
• Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
