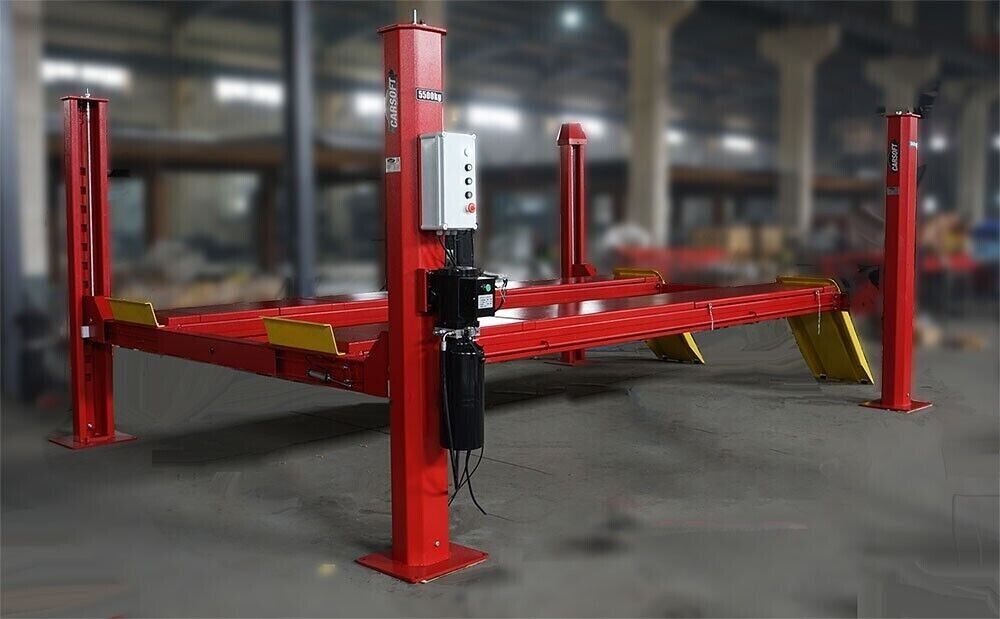

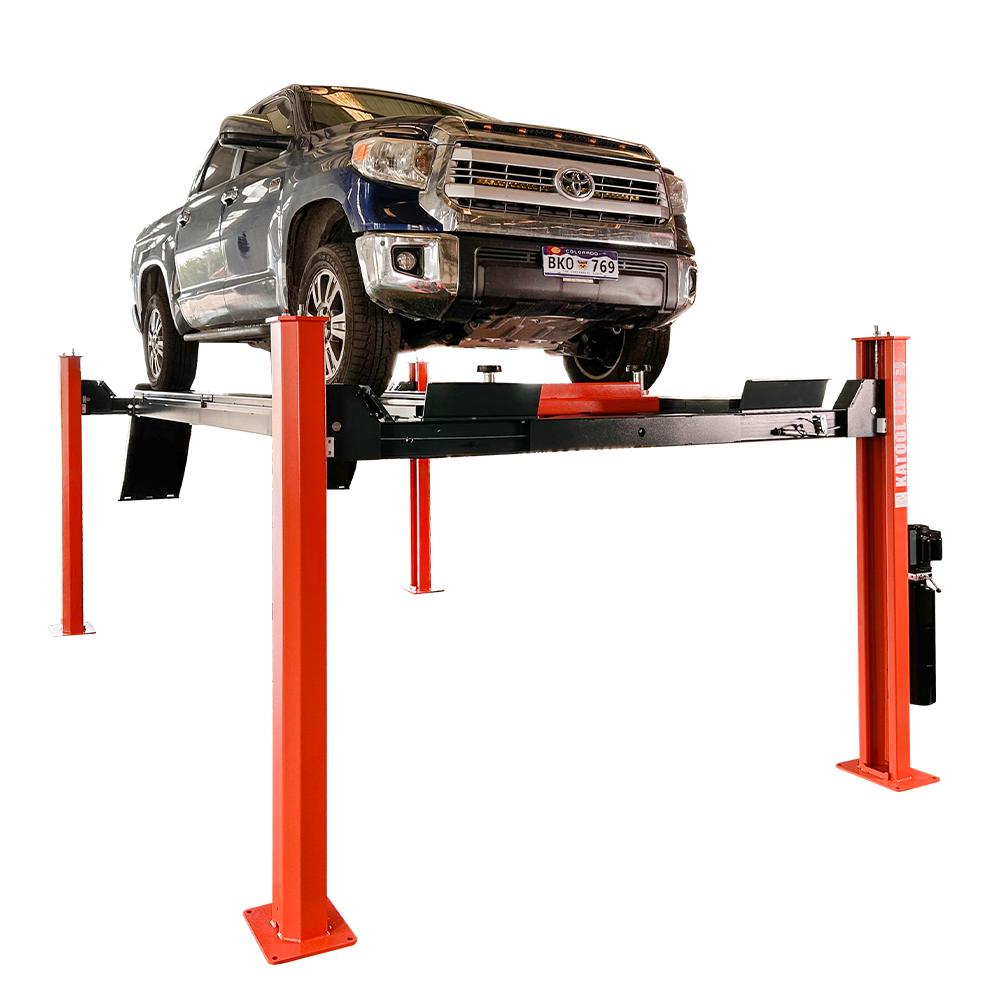

KT-4H150 Four Post Alignment Vehicle Lift 15,000lbs
*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
-
15000lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

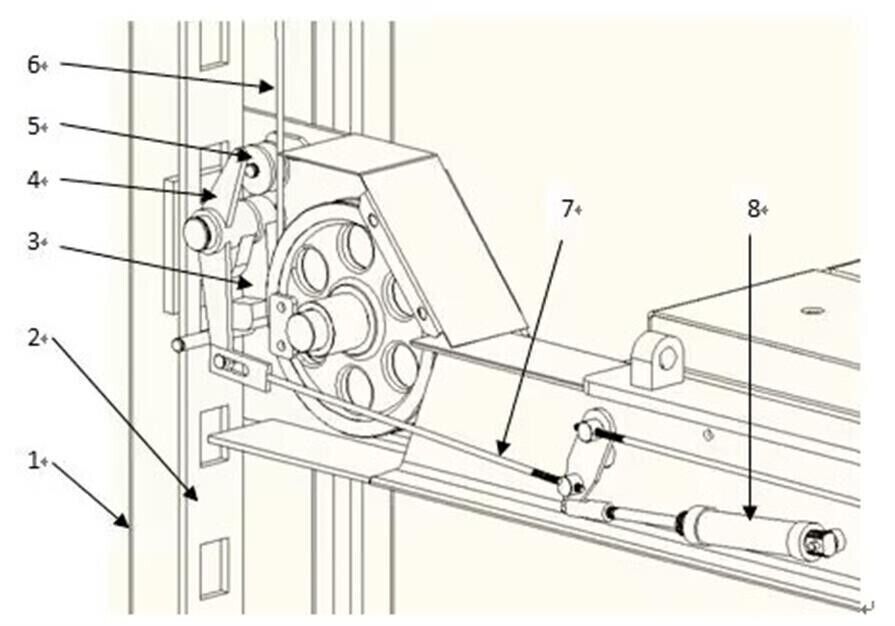

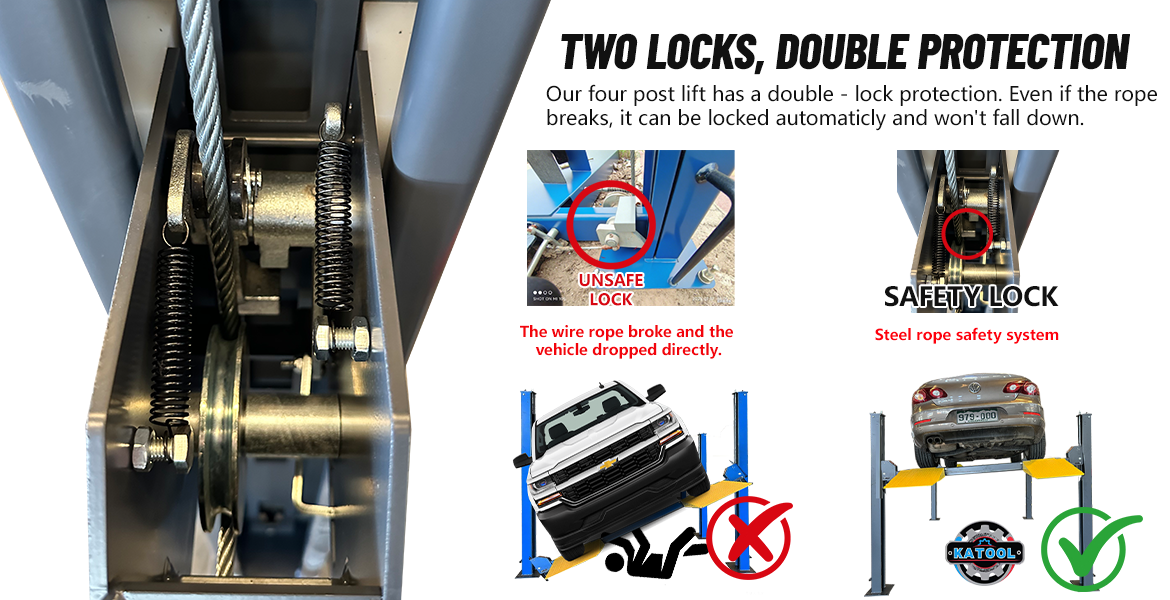

- Spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.

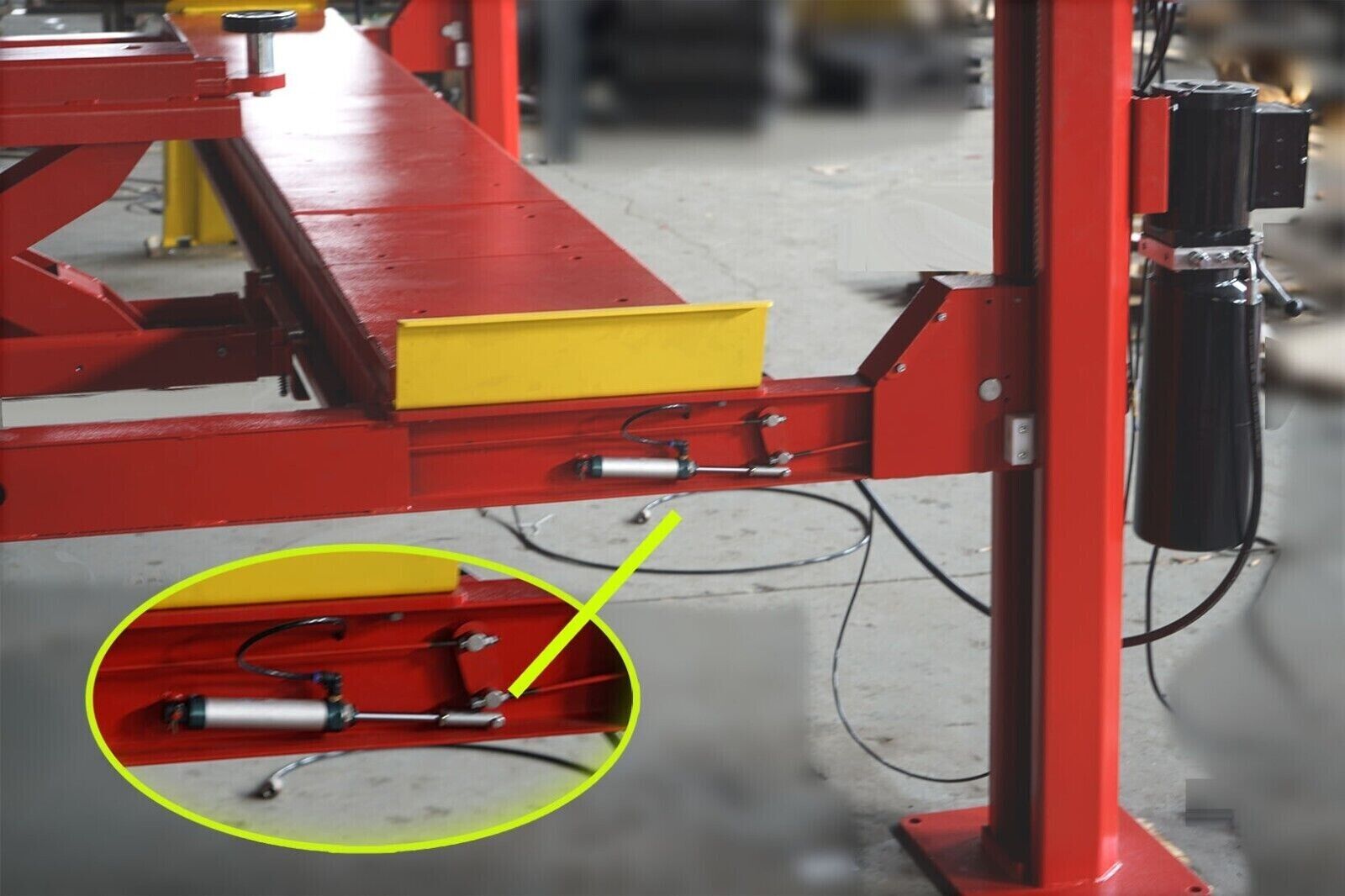

- Equipped with multiple adjustable height locking positions for variable-height positioning. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.
- Power side column can be installed at both sides, front or rear.

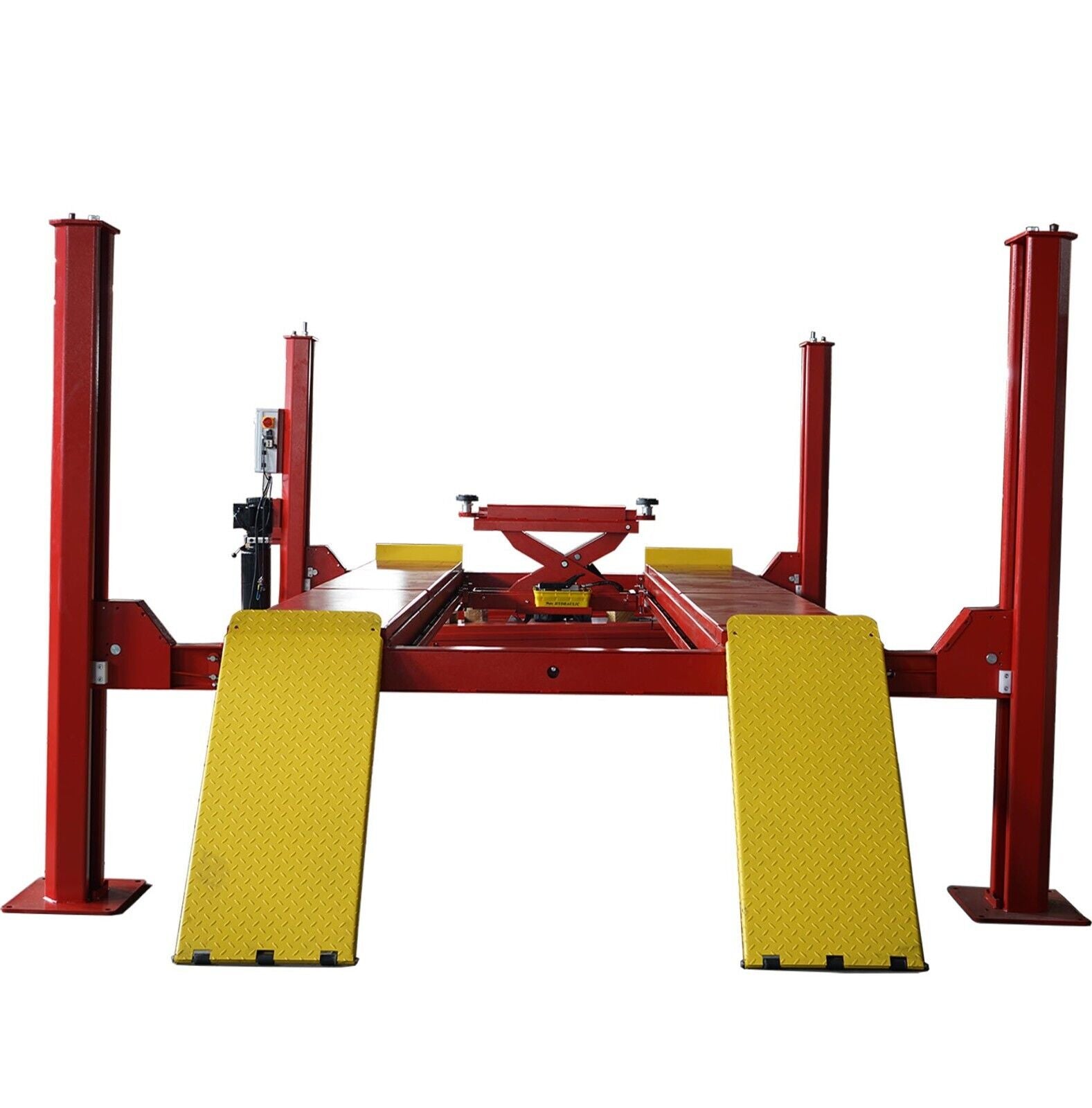

- Non-skid diamond texture ramps and non-slip coated runways.

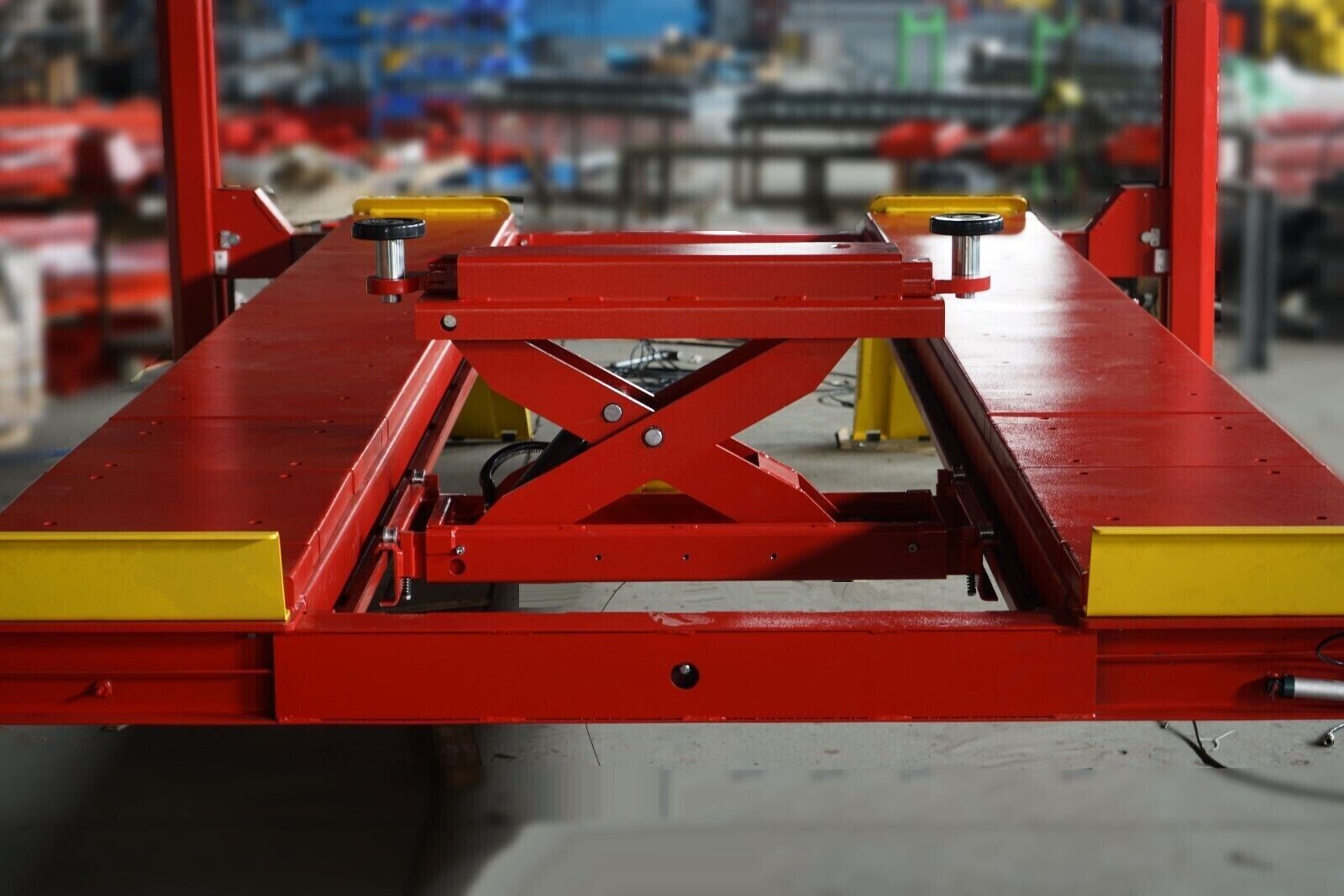

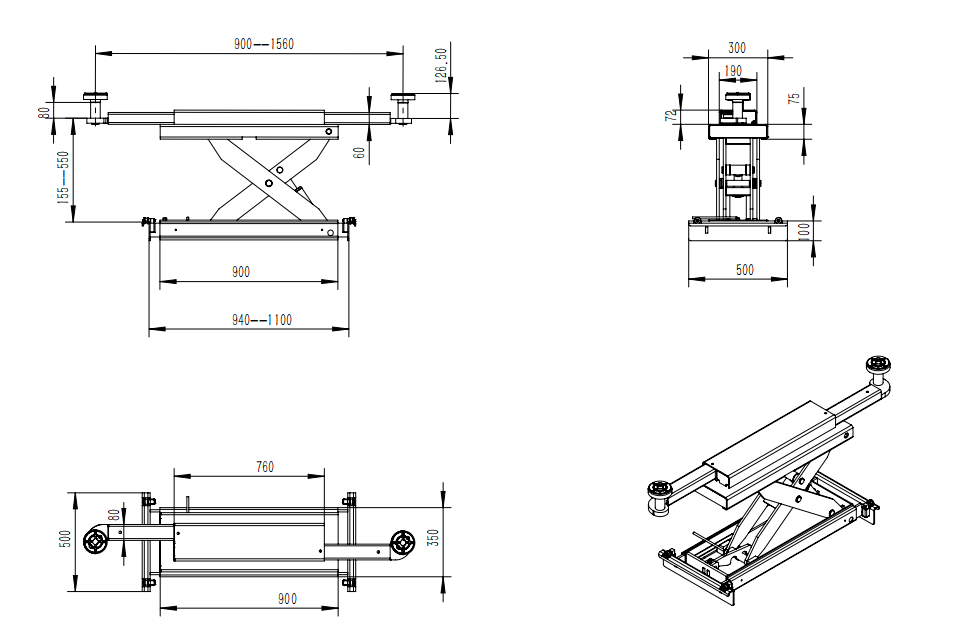

- One 6000lbs rolling jack is included.

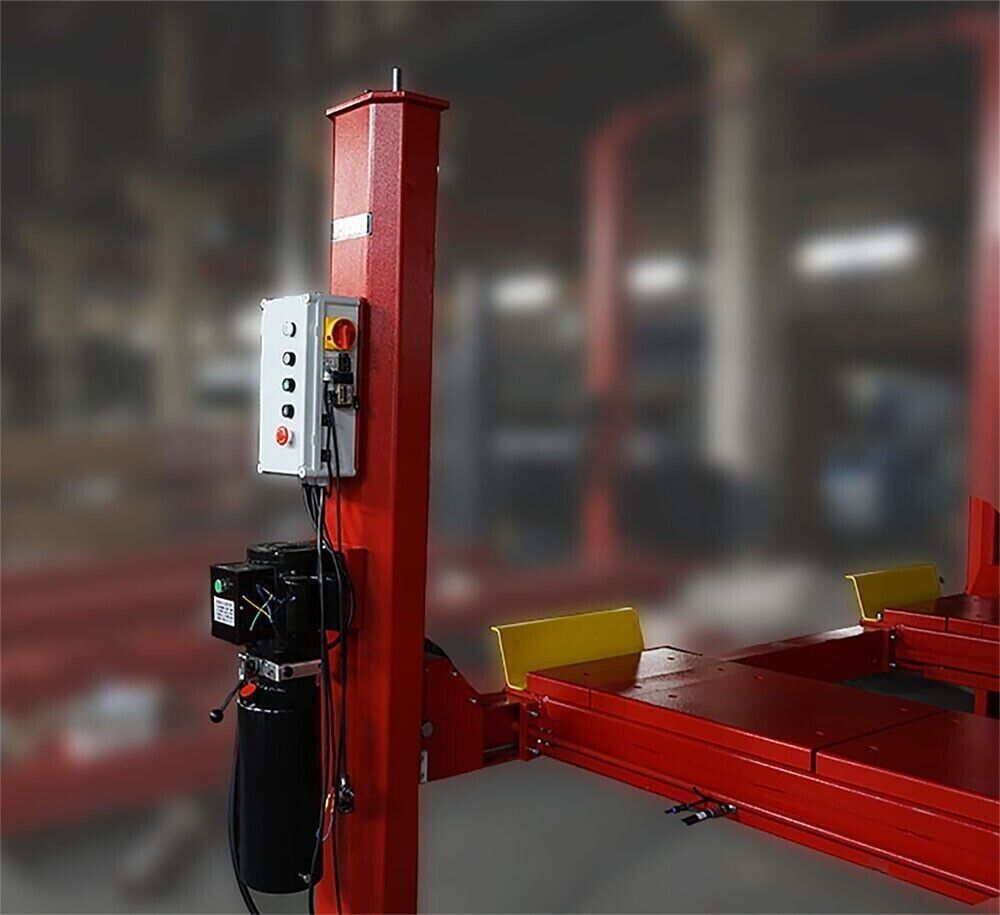

- High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)

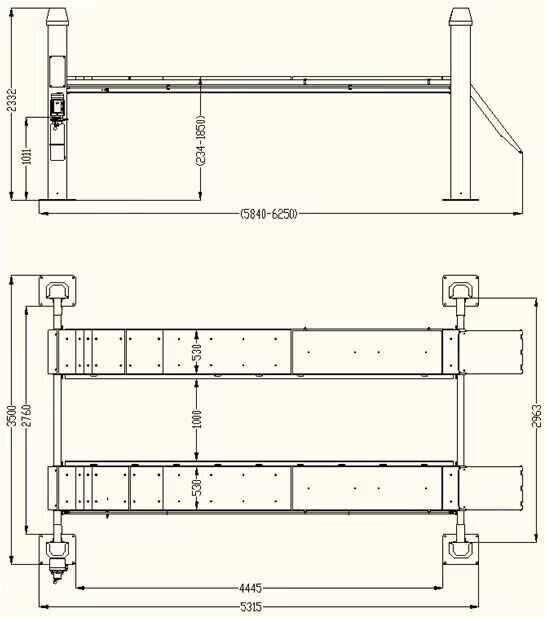

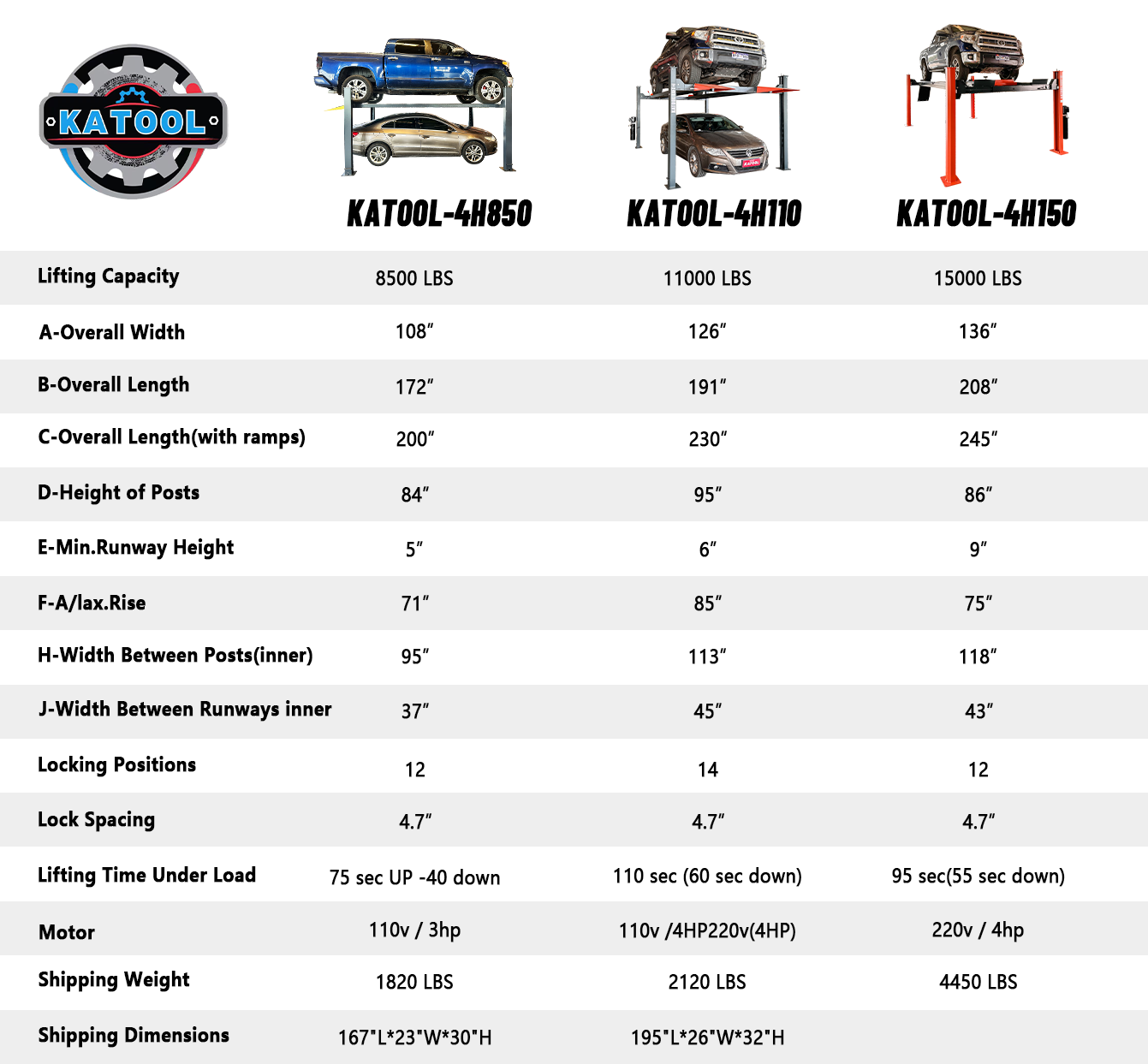

| Lifting Capacity |
15000 lbs |
| Max. Lifting Height |
75"/1905mm |
| Lifting Time |
95s Up / 55s Down
|
| Height of Posts |
86"/2184mm |
| Width Overall |
136"/3454mm |
Length Overall
|
208"/5283mm |
| Overall Length(with ramps) |
245"/6223mm |
Min. Runway Height
|
9"/228mm |
| Motor |
220VAC/4PH |
| Net Weight |
4450lbs |
Pick-up location
CA Warehouse: 19465 E Walnut Dr. N CITY OF INDUSTRY CA 91789
TX Warehouse: 2469 FM 359 South Rd, Building B, Suite E, Brookshire, TX 77423
GA Warehouse: 88 Clyde Alexander Way, Pooler GA 31322
IL Warehouse : 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
NJ Warehouse: 99 CAVEN POINT ROAD UNIT A JERSEY CITY NJ 07305
Please feel free to contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.
12 Months All Parts Warranty!
|
